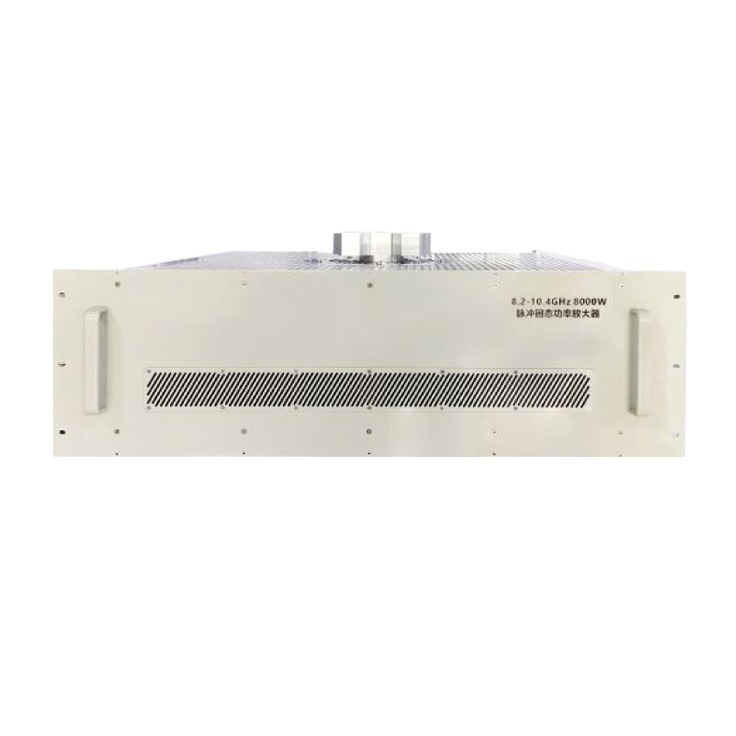

Frequency Range: 8.2GHZ - 10.4GHz
Output Power: 8000W
Input Power: 0dBm
Gain: 59dB
Gain Flatness: ± 2dB
Input VSWR: 1:5:1
Harmonics: -30dBc
Spurious: -60dBc
Impedance: 50 ohm
Pulse Rise Time: 0.5μs (max.)
Pulse Fall Time: 0.5μs (max.)
Pulse Width: 50μs (max.)
Input port: Type N (female)
Output port: WR90
Communication Interface: GPIB, LAN
Power Supply: AC 220V±10%, 50/60Hz
Cooling Type: Air cooling
Operating Temperature: 0 ~ 50℃
Dimension: 900x820x500 mm
