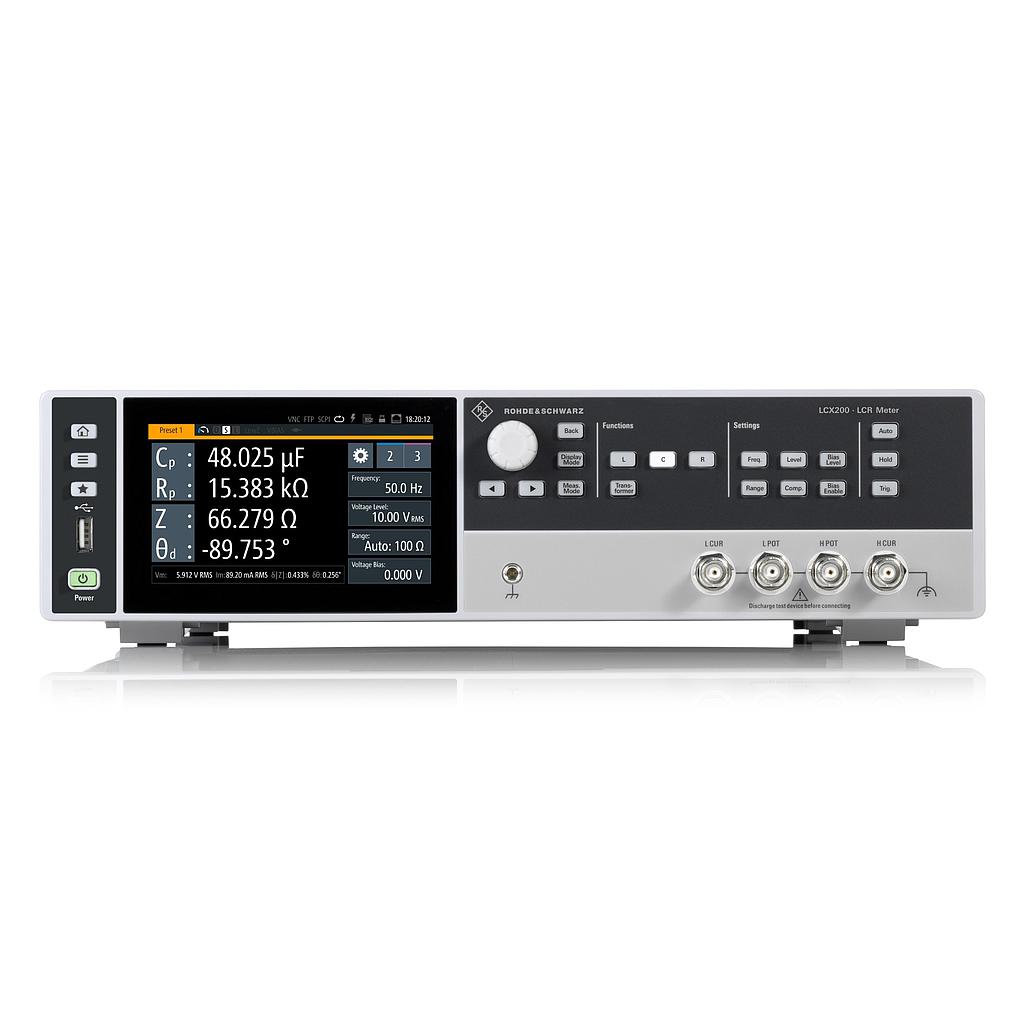

Rohde & Schwarz LCX200 LCR 测试仪 (100 mΩ ~ 100 MΩ)

Test signal frequency: DC, 4 Hz to 10 MHz (option)

Test signal voltage:

< 1 MHz: 100 mV to 10 V,

> 1 MHz: 100 mV to 2 V

DC bias voltage (internal): 0 V to +10 V

DC bias current (internal): 0 mA to 200 mA

External DC bias voltage, input: 0 V to +40 V

Source impedance: 100 Ω, 10 Ω

Measurement range: 100 mΩ to 100 MΩ

Basic accuracy for impedance measurements: 0.05%

Datasheet
