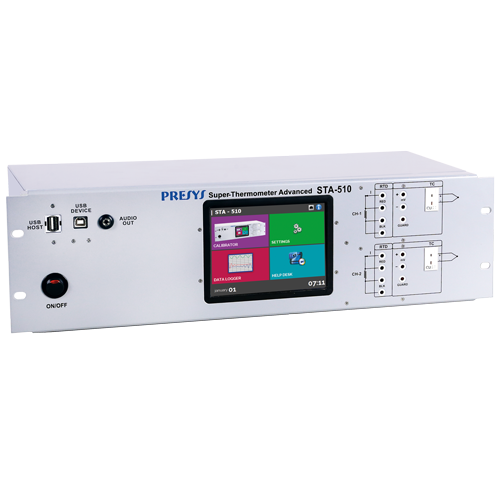

PRESYS STA-510-RM 高级超级温度计

Input Ranges:

mV

0 to 70 mV; Resolution: 0.0001 mV; Accuracy: ± 0.002 % FS; Remarks: R input > 10 MΩ

Resistance

0 to 100 Ω; Resolution: 0.0001 Ω; Accuracy: ± 0.001 Ω; Remarks: Excitation current 1.0 mA

100 to 500 Ω; Resolution: 0.001 Ω; Accuracy: ± 0.004 Ω; Remarks: Excitation current 1.0 mA

Dimension: : 132 mm x 483 mm x 250 mm (HxWxD)

Weight: 4 kg approx

Engineering units: Temperature: °C, °F, K

Operating ambient: 0 to 50 °C and 90 % maximum relative humidity

Details

Datasheet
