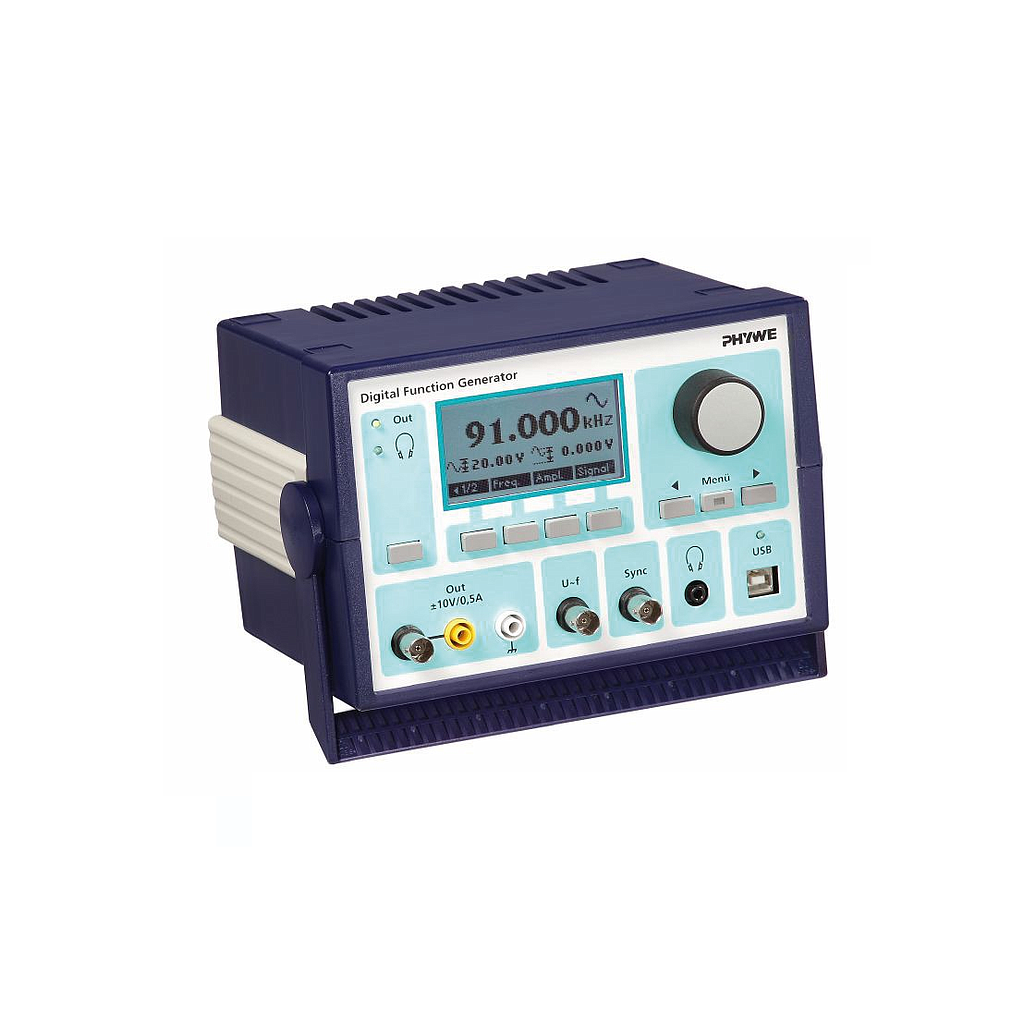

PHYWE 13654-99 Digital Function Generator (0.1Hz~0.9999Mhz)

Function and Applications

Digital signal generator for use as a programmable voltage source in practical or demonstration experiments, particularly in the disciplines of acoustics, electrical engineering and electronics.

Benefits

- Can be used as universal stand-alone device or controlled via a USB interface

- Universally applicable thanks to broad, continually adjustable frequency range

- Usable as programmable voltage source via amplifier output

- Intuitive, menu-driven operation using control knob and function buttons, with help capability

- Illuminated monochrome graphic display for maximum visibility and readability

- Simple setting of voltage and frequency ramps in stand-alone mode

- Features V = f(f) output for easy reading of frequency in the form of a voltage - ideal for measuring - circuit response to frequency ramps using an oscilloscope

- Low distortion and signal-to-noise ratio for brilliantly clear signals - ideal for acoustics/audio experiments

Equipment and Technical Data

- Frequency range: 0.1 Hz...0.9999 Mhz

- Steps: 0.1 Hz

- Distortion factor:  <0.5%

- Signal forms:  Sine, triangle, square, frequency ramp, voltage ramp

- Amplifier output, short-circuit-proof, via BNC and 4-mm connectors:

      - Output voltage: 0 … 20 Vpp for R out; > 40 Ohm

      -  DC offset:  ±10 V (steps 5 mV)

      - Power output:  5 W (for up to 1 A)  where R out; = 20 Ohm

- Headphone output via 3.5 mm jack socket:

      - Switch for selecting standard headphones or speakers

      - Output voltage: 0 … 1 Vpp for R out; = 400 Ohm

- Sync (trigger) output via BNC:

      - Output resistance: 50 Ω

      - Logic level: CMOS (5 V)

- V=f(f) output via BNC, short-circuit-proof:

      - For outputting frequency in the form of a proportional voltage 0 ... 10 V (0...1 MHz)

- Sweep function for frequency ramp

- Monochrome graphic display with continuous setting for background illumination: 128 x 64 pixels

- USB 2.0 port

- Settings via buttons and knob or software-assisted via USB

- Power supply 100~240 V at 50/60 Hz

- Impact-resistant plastic case with carrying handle

- Dimensions (mm): 194 x 140 x 130

Scope of delivery: measureLAB, multi-user license

Recommended accessories: Software Cobra4 - multi-user licence
