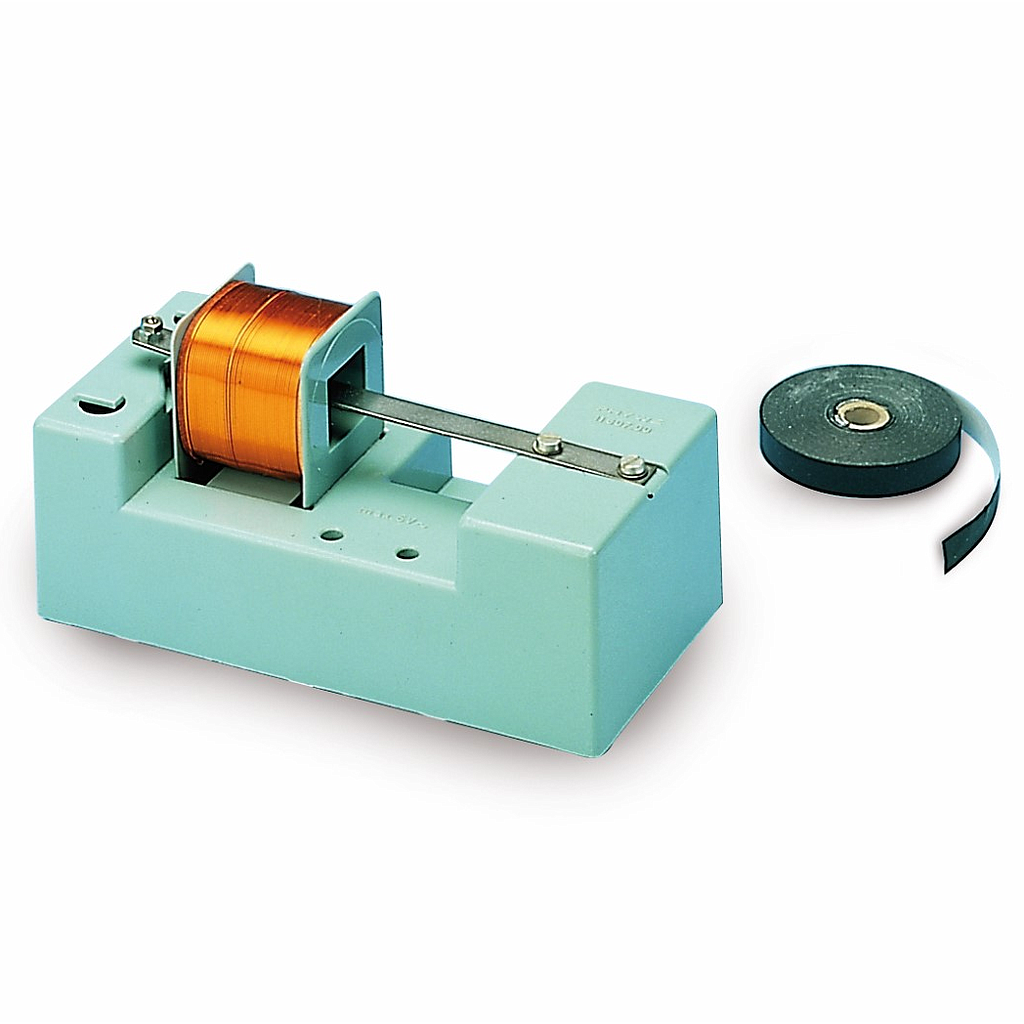

PHYWE 11607-00 落物时间记录器

To record straight linear movements. For track and drop experiments.

Base with a fixed coil, fed with an alternative voltage.

A permanent magnet is fixed under the free end of a spring, which causes a periodic movement.

Thus points are plotted at constant time intervals on a self-writing paper attached to the moving measuring object.

The device can be set up slide-proof on the experimenting table.

It can also be held on a support by means of the »PASS« right angle clamp.

Connection over two 4 mm jacks.

Time recording frequency: 50 Hz.

Operating voltage 6 V~/0.8 A.

Dimensions (mm): 165 × 60 × 80.

Necessary accessories:

Recording tape, 10 mm wide 11607-01
