Bridge Resistance: 120 Ohm
Maximum Number of Differential Analog Input Channels: 8
Analog Input Voltage Range: -29.4 mV/V to 29.4 mV/V
Maximum Sample Rate: 10 kS/s/ch
Bridge Configurations: Quarter Bridge
Front Connection Type: Spring Terminal
Conformal Coated: No
Supported Hardware Platform: CompactRIO
Provides analog input channels for measuring strain as part of CompactDAQ or CompactRIO systems.

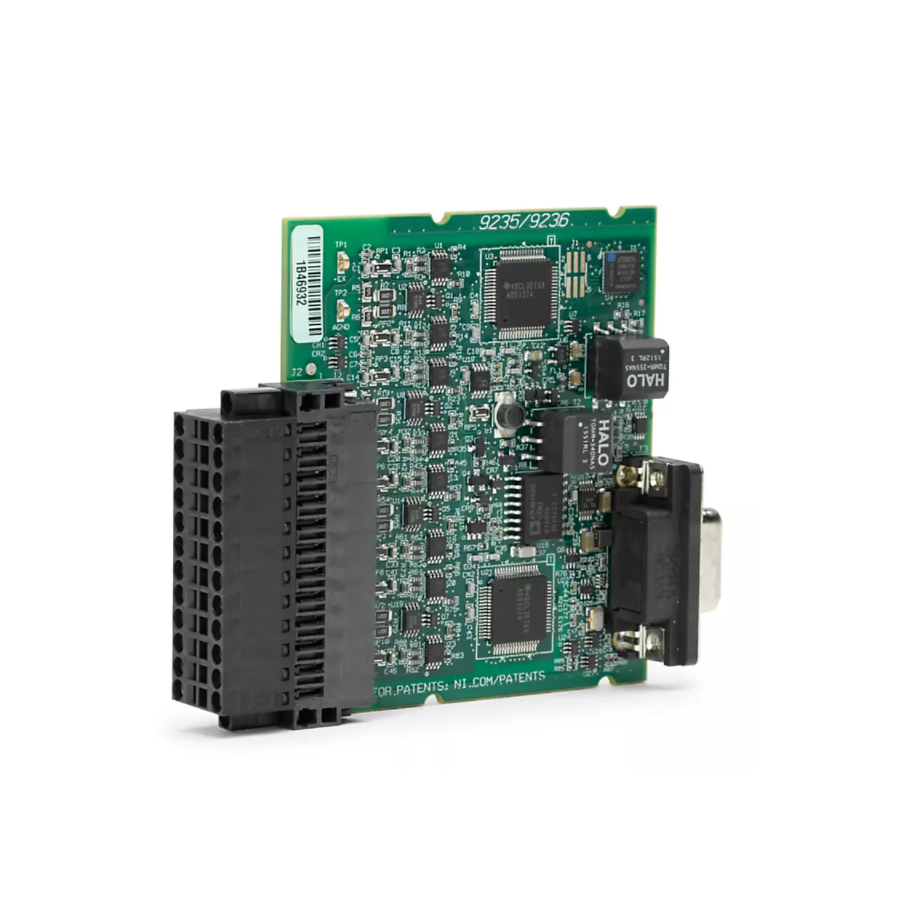

The C Series Strain/Bridge Input Module works with higher-channel-count, dynamic strain measurement systems. Modules can acquire measurements from up to eight channels, with compatibility options for quarter-, half-, and full-bridge sensors. The C Series Strain/Bridge Input Module is ideal for application channels requiring measurements at particular times, such as impact tests. It includes built-in voltage excitation, as well as transient isolation for high-common-mode noise rejection and improved safety.The C Series Strain/Bridge Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
