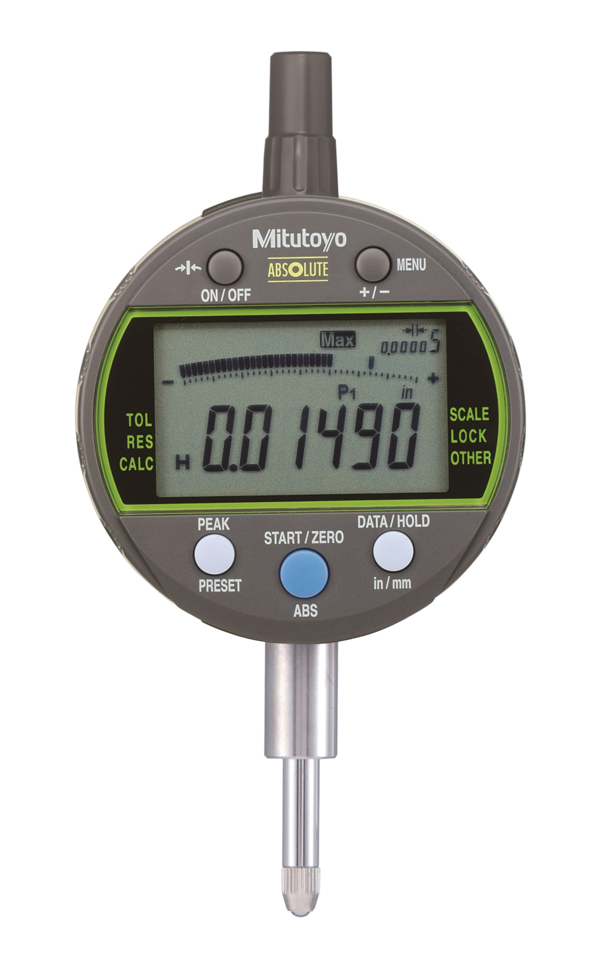

MITUTOYO 543-302B-10 Digital Indicator (0.5"/12.7 mm)

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Range: 0.5"/12.7 mm

Digital step: 0.00005"/0.0001"/0.0005"/0.001 mm/0.01 mm

Max. Permissible Error E MPE (Total Range): ±0.0001"/0.003 mm

H MPE (Hysteresis): 0.0001"/0.002 mm

R MPE (Repeatability): 0.0001"/0.002 mm

Measuring force MPL: ≤1.5 N

Protection: IP42

Type: ASME/ANSI/AGD Standard

Mass: 170 g

Display: LCD, character height 8 mm, 330° rotatable

Max. response speed: Unlimited

Measurement frequency (MAX/MIN/RANGE):

        Standard mode: 10 times/s

        fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)

AlarmLow voltage, ABS composition error, overflow error, setting error

Stem ∅9.52 mm

Contact pointCarbide ball, thread: No.4-48UNF

Power supply1 battery CR2032

Battery life:

        Standard mode: approx. 1 year

        fast mode: approx. 4.5 month
