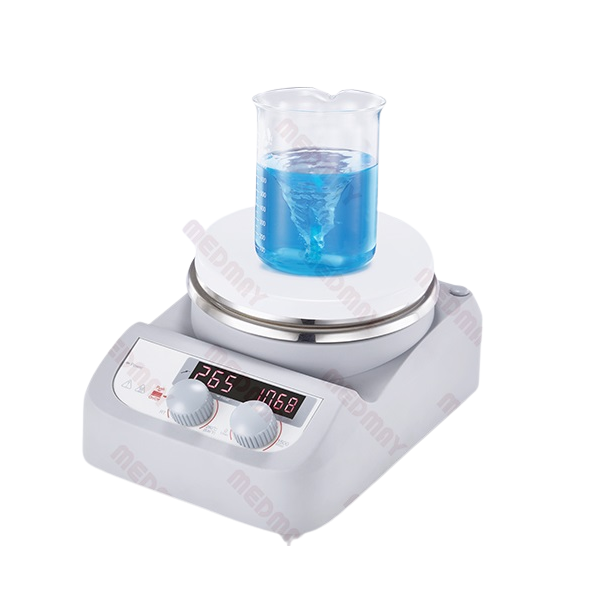

Medmay MS-H280-Pro LED数字式磁力热板搅拌器 (1500rpm, 280 ℃)


Digital temperature control with max. temperature up to 280℃.

Digital speed control with max. speed up to 1500rpm.

Stainless steel work plate with ceramic coating provides good chemical resistant performance.

External  temperature  control  is  possible  by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.5℃.

LED display shows temperature and speed.

The “HOT” warning will flash when the work plate temperature is above 50℃even if the hotplate is turned off.


Work plate Dimension:φ135mm(5 inch)

Work plate material:stainless steel cover  with ceramic

Motor type:Brushless DC motor

Motor rating input:5W

Motor rating output:3W


Heating output:500W

Voltage:100-120/200-240V  50/60Hz

Max. stirring quantity[H2O]:3L

Max. magnetic bar[length]:50mm

Speed range:100-1500rpm

Speed display:LED

Temperature display:LED

Speed display resolution:±1rpm

Heating temperature range:Room temp.-280, increment 1°C

Control accuracy of work plate:±1°C(<100°C) ±1%(>100°C)

Over  heat Protection:320°C

Temperature  display accuracy:±1°C

External  temperature sensor:PT1000 (accuracy ±0.5°C)

"Hot" warning:50°C

Protection class:IP21

Dimension (WxDxH):150×260×80mm


Permissible ambient temperature and humidity:5-40℃ 80%RH
