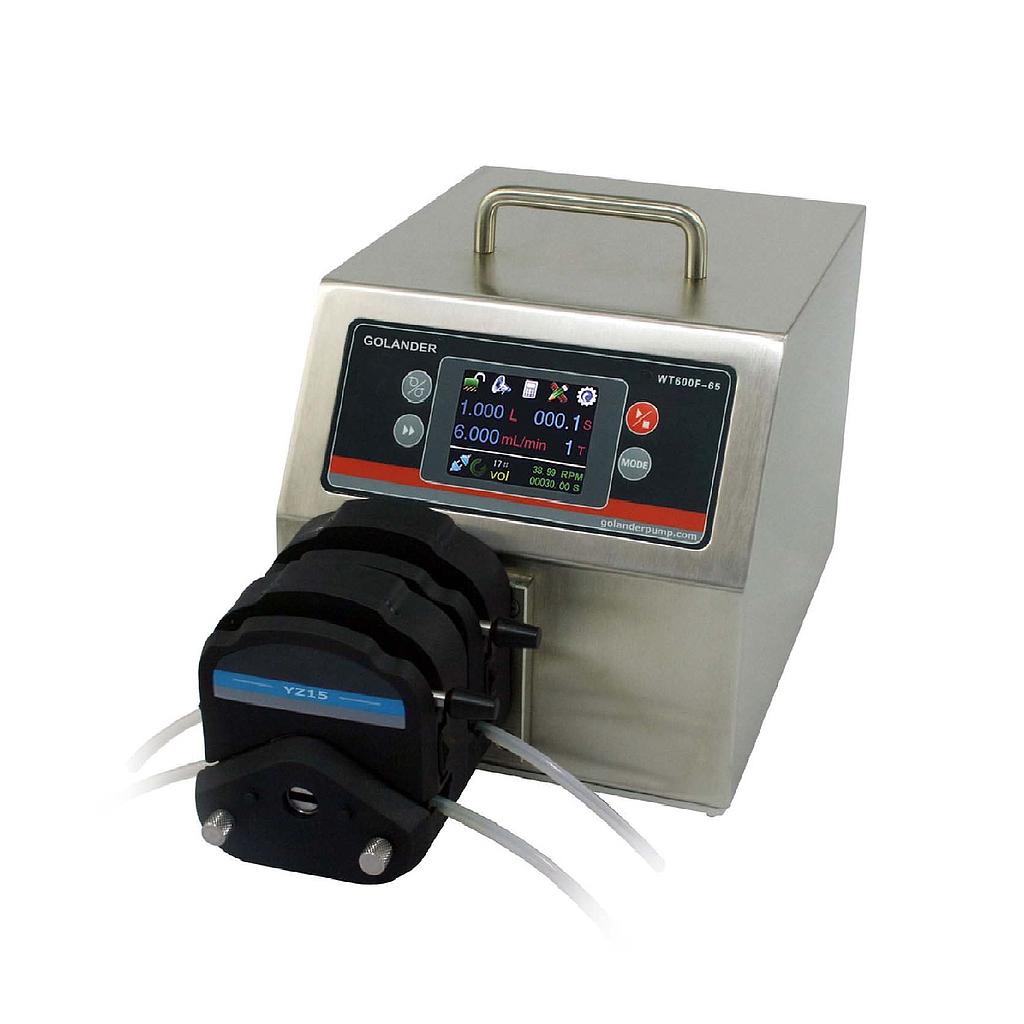

Leadfluid WT600F-65 智能点胶蠕动泵 (0.06-2300mL/min, 2 CH)

Flow range:  0.06-2300 mL/min

Speed range: 0.1-600 rpm

Speed resolution: 0.1 rpm

Flow accuracy: 0.5%

Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz

Power consumption: < 100W

External on/off voltage control: 5V, 12V (standard), 24V (optional). External analog control: 0-5V (standard); 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS interface

Operating condition: Temperature 0~40°C; Relative humidity < 80%

IP grade: IP65

Dimensions (L x W x H): 330 x 220 x 235 mm (13.0 x 8.7 x 9.3 inch)

Weight: 7.1kg (15.7 lbs)
