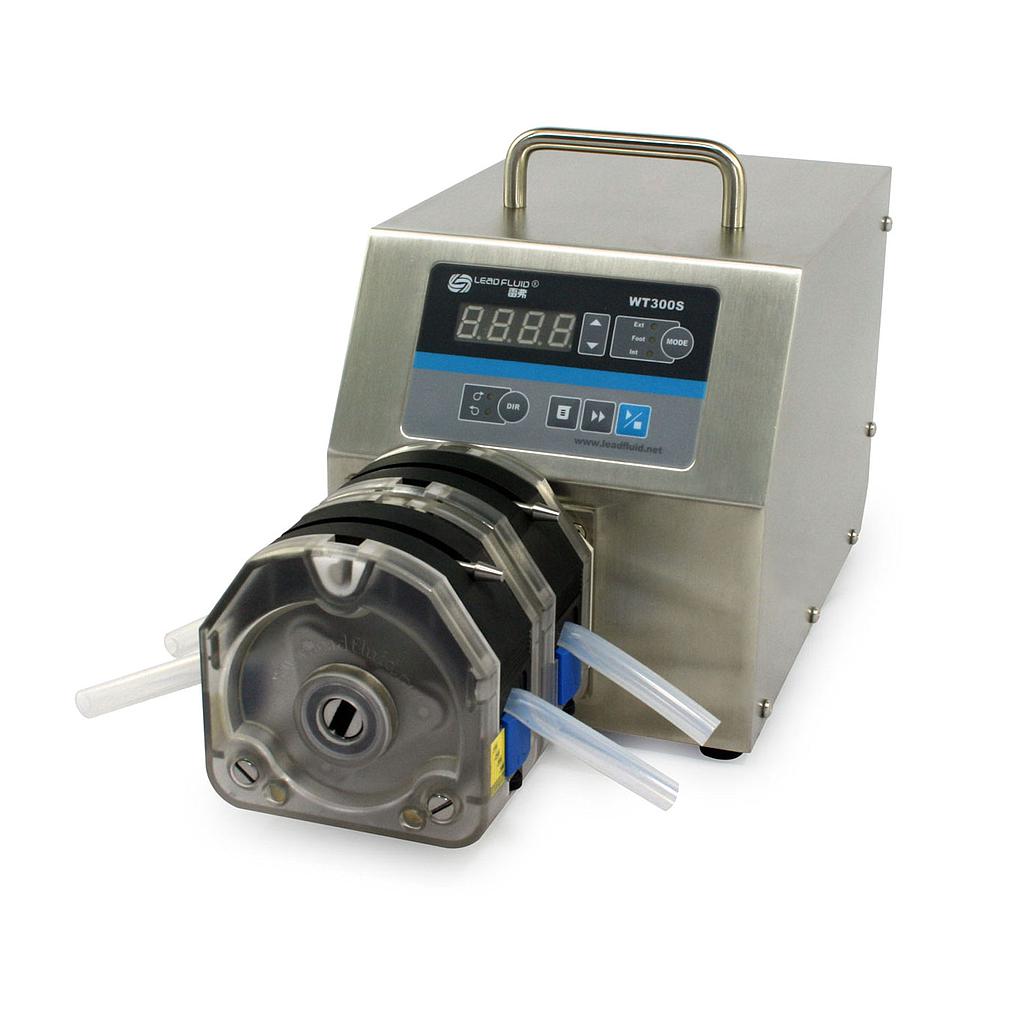

Leadfluid WT300S 基本变速蠕动泵 (3-3500mL/min, 2 CH)
制造商: Leadfluid Model: WT300S P/N: WT300S(2×KZ25-PC) 来源: China 保障: 12 Month - 报价要求
- 报价要求
- 联系
Specifications
Flow range: 3-3500 mL/min
Speed range: 30-350 rpm/min
Speed resolution(rpm): 1 rpm
Flow accuracy: 3%
Power supply: AC 220V+/-10%, 50Hz/60Hz; AC 100V+/-10%, 50Hz/60Hz
Power consumption: <200W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS interface
Operating condition: 0~40 °C
Relative humidity: < 80%
IP grade: IP31
Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch)
Weight: 6.2kg (13.9 lbs)
WT300S Suitable Pump Heads and Tubing, Flow Parameters
| Drive type | Pump head | Ch | Tubing size | Flow rate per channel (mL/min) |
| WT300S | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 3-990 |
| YZ25 | 1 | 15# 24# | 50-990 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 3-990 | |
| 2 x YZ25 | 2 | 15# 24# | 50-990 | |
| 4 x YZ15 | 4 | 13# 14# 16# 19# 25# 17# | 3-990 | |
| 4 x YZ25 | 4 | 15# 24# | 50-990 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 3-1300 | |
| YT25 | 1 | 15# 24# 35# 36# | 50-1600 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 3-1300 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 50-1600 | |
| 4 x YT15 | 4 | 13# 14# 16# 19# 25# 17# 18# | 3-1300 | |
| 4 x YT25 | 4 | 15# 24# 35# 36# | 50-1600 | |
| DT15-24 | 2 | 16# 19# 25# 17# | 20-1300 | |
| DT15-44 | 4 | 16# 19# 25# 17# | 20-1300 | |
| KZ25 | 1 | 15# 24# 35# 36# | 80-3500 | |
| 2 x KZ25 | 2 | 15# 24# 35# 36# | 80-3500 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
