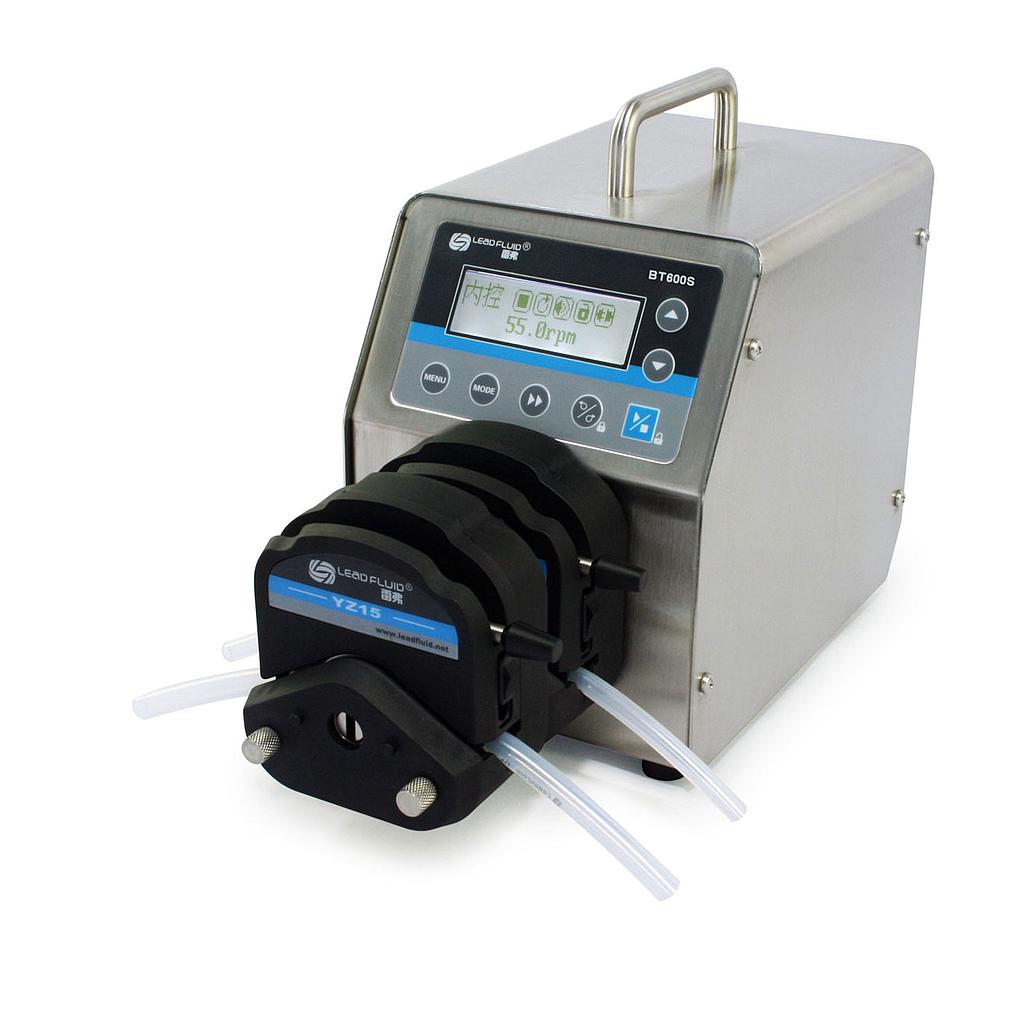

Leadfluid BT600S 基本变速蠕动泵 (0.006~2300mL/min, 2 CH)

Specifications

Flow range: 0.006~2300 mL/min

Speed range: 0.1-600 rpm

Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; between 100-600 rpm, 1 rpm resolution

Speed accuracy: 0.2%

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: < 60W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS interface

Operating condition: Temperature 0-40°C; Relative humidity < 80%

IP grade: IP31

Dimensions (L x W x H): 264 x 150 x 270mm (10.37 x 5.91 x 10.63 inch)

Weight: 5.2 kg (11.5 lbs)

Details

BT600S Suitable Pump Heads and Tubings, Flow Parameters

Drive typePump headCh          Tubing sizeFlow rate per channel (mL/min)
BT600SYZ15113# 14# 16# 19# 25# 17#18#               0.006-2300
YZ25115# 24#               0.17-1700
2 x YZ15213# 14# 16# 19# 25# 17#18#               0.006-2300
2 x YZ25215# 24#               0.17-1700
DT15-24219# 16# 25# 17#               0.07-2240
YT15113# 14# 16# 19# 25# 17# 18#               0.006-2300
YT25115# 24# 35# 36#               0.17-2900
2 x YT15213# 14# 16# 19# 25# 17# 18#               0.006-2300

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
