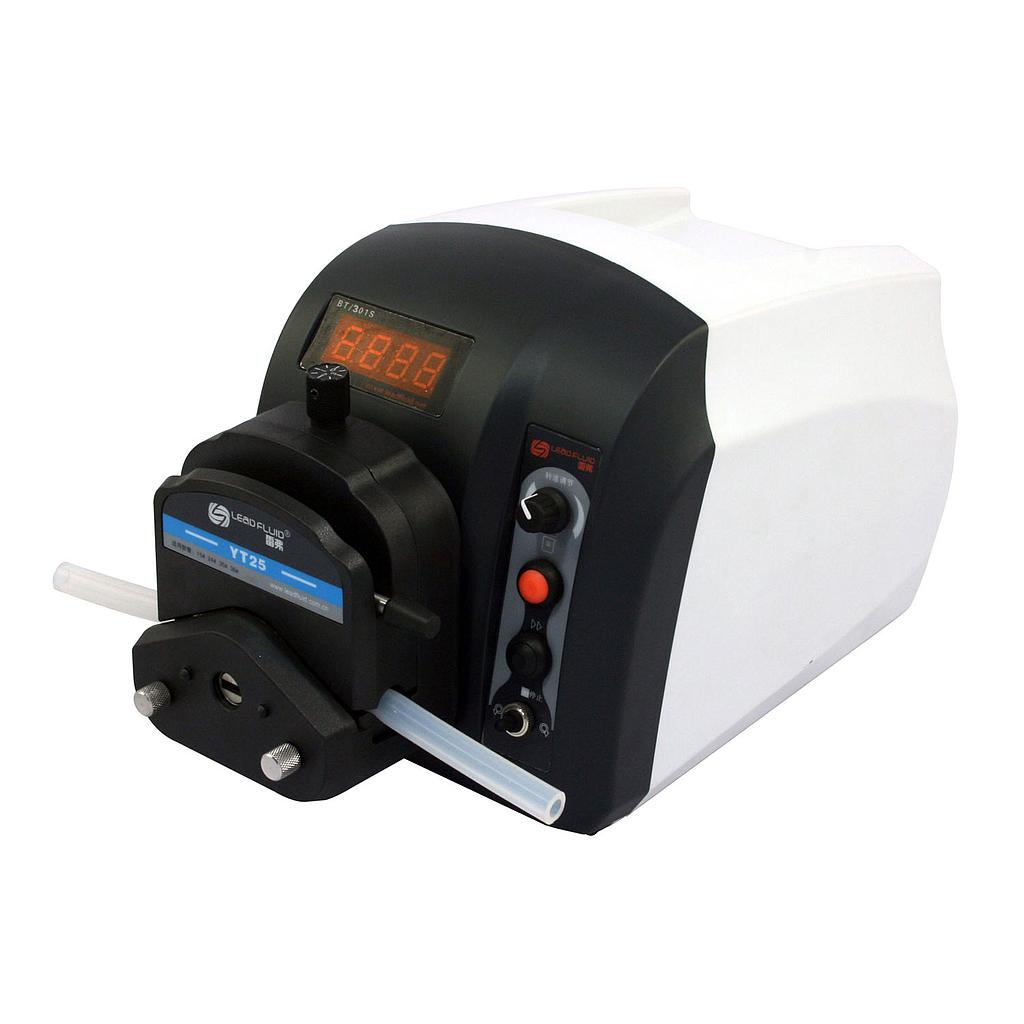

Leadfluid BT301S 基本变速蠕动泵 (0.16~1690mL/min, 1 CH)

Specifications

Flow range: 0.16~1690 mL/min

Flow accuracy: 0.5%.

Speed range: 0.1-350rpm

Speed resolution: between 0.1-100 rpm, the speed resolution is 0.1 rpm; between100-350 rpm, the speed resolution is 1 rpm

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: < 40W

External control on/off signal: 5V, 12V (standard), 24V(optional). External analog control signal: 0-5V(standard), 0-10V, 4-20mA(optional)

Communication interface: RS485 MODBUS.

Ambient temperature: 0-40°C

Relative humidity: < 80%

IP grade: IP31

Dimensions (L x W x H): 261 x 180 x197mm (10.2 x 7.1 x 7.8 inch)

Weight: 4.7 kg (10.4 lbs)
