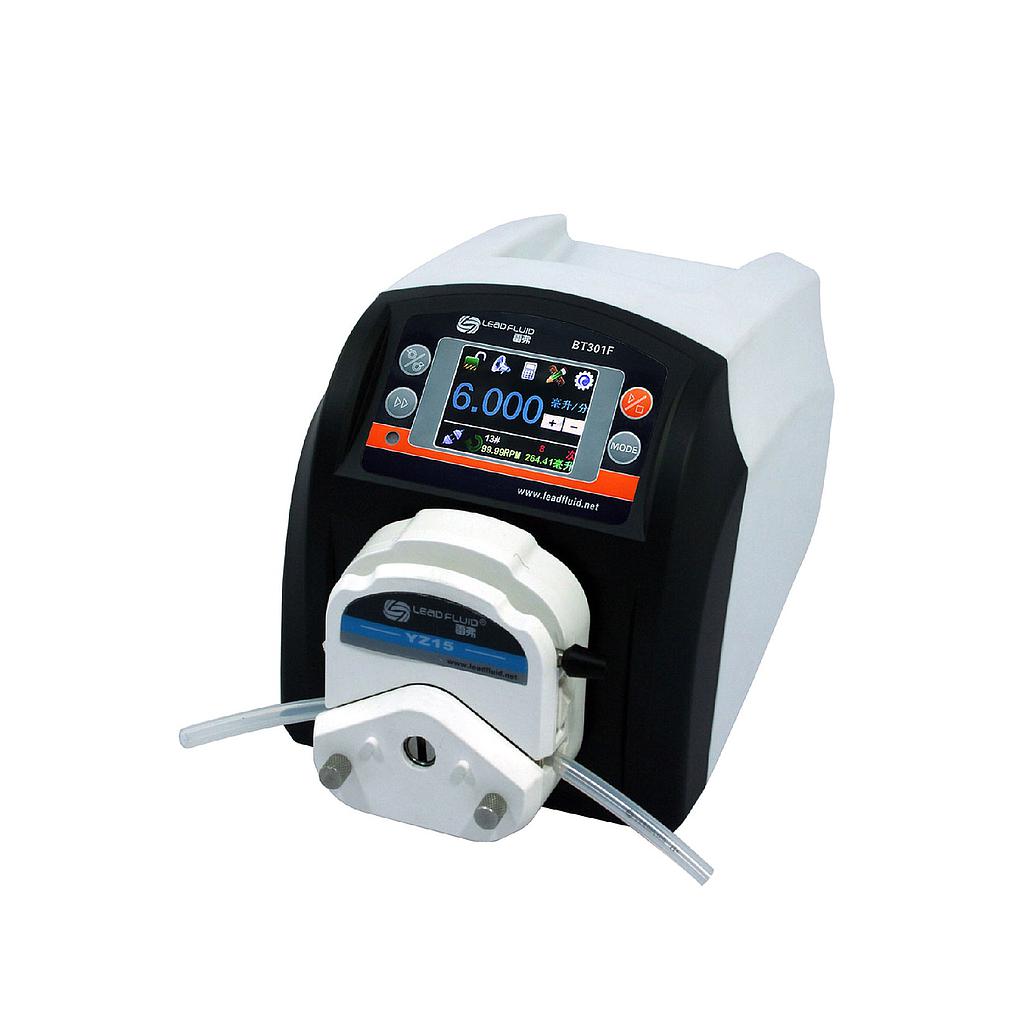

Leadfluid BT301F 智能点胶蠕动泵 (0.006-1300mL/min, 1 CH)
制造商: Leadfluid Model: BT301F P/N: BT301F(YZ15) 来源: China 保障: 12 Month - 联系
Flow range: 0.006-1300 mL/min
Speed range: 0.1-350 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: < 40W
Logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: Temperature 0-40°C; Relative humidity < 80%
IP grade: IP31
Dimensions (L x W x H): 257 x 180 x 197mm (10.12 x 7.09 x 7.76 inch)
Weight: 4.7 kg (10.36 lbs)
Details
| Drive type | Pump heads | Ch | Tubing size | Flow rate per channel (mL/min) |
| BT301F | YZ15 | 1 | 13# 14# 16# 19# 25# 17#18# | 0.006-1340 |
| YZ25 | 1 | 15# 24# | 0.16-990 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-1300 | |
| YT25 | 1 | 15#24#35#36# | 0.16-1690 | |
| DT15-24 | 2 | 16# 19# 25# | 0.07-770 |
