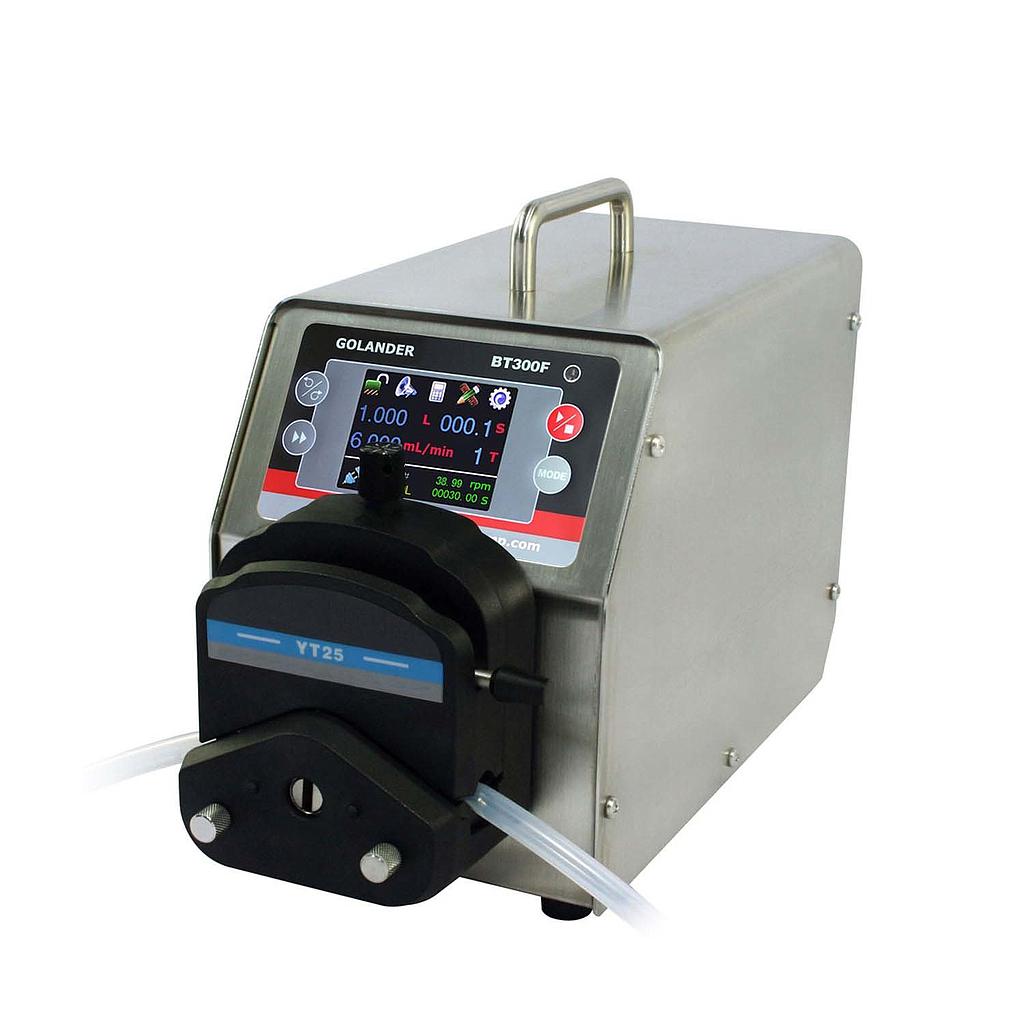

Leadfluid BT300F 智能点胶蠕动泵 (0.16~1690mL/min, 1 CH)

Flow range: 0.16~1690 mL/min

Speed range: 0.1-350 rpm

Speed resolution: 0.1 rpm

Speed accuracy: 0.2%

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: <50W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: Temperature 0~40°C; Relative humidity < 80%

IP grade: IP31

Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)

Weight: 5.3 kg (11.7 lbs)

Details

BT300F Suitable Pump Heads and Tubing, Flow parameters

Drive typePump headChTubing size (mm)Flow rate per channel (mL/min)
BT300F



YZ15

1, 2

13#14#16#19#25#17#18#

0.006~1340

YZ25

1, 2

15#24#

0.16~990

DT15-14

1

19#16#25#17#

0.07~1300

DT15-24

2

19#16#25#17#

0.07~1300

DT15-44

4

19#16#25#

0.07~770

YT15

1, 2

13#14#16#19#25#17#18#

0.006~1300

YT25

1

15#24#35#36#

0.16~1690
