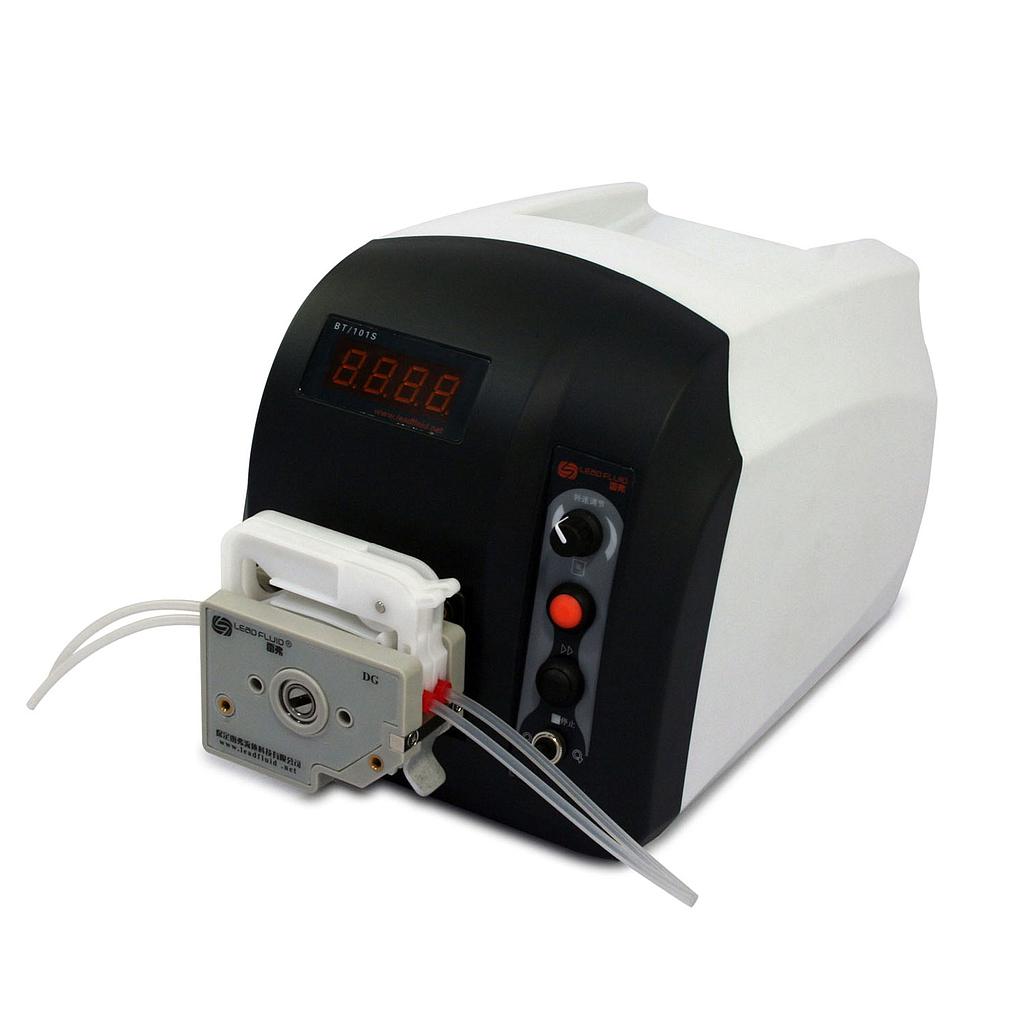

Leadfluid BT101S 基本变速蠕动泵 (0.0001~41mL/min, 2 CH)

Specifications

Flow range: 0.0001~41 mL/min

Speed range: 0.1-150 rpm

Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution

Speed accuracy: 0.5%

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: < 30W

External logic level control signal: 5V, 12V (standard), 24V (optional).

External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: Temperature 0~40°C; Relative humidity <80%

IP grade: IP31

Dimensions (L x W x H): 261 x 180 x 197 mm (10.2 x 7.1 x 7.8 inch)

Weight: 4.5 kg (10 lbs)

Details

BT101S Applicable Pump Heads and Tubings, Flow Parameters

Drive typePump headCH         Tubing size (mm)Flow rate (mL/min) per channel
BT101S
(ABS Plastic case)
DG6-1 (6rollers)1Wall:0.8~1, ID:≤3.17                 0.0001-49
DG10-1 (10rollers)1Wall:0.8~1, ID:≤3.17                 0.0001-41
DG6-2 (6rollers)2Wall:0.8~1, ID:≤3.17                 0.0001-49
DG10-2 (10rollers)2Wall:0.8~1, ID:≤3.17                 0.0001-41
DG6-4 (6rollers)4Wall:0.8~1, ID:≤3.17                 0.0001-49
DG10-4 (10rollers)4Wall:0.8~1, ID:≤3.17                 0.0001-41
DT10-18113# 14# , Wall:0.8~1, ID:≤3.17                 0.0002-82
DT10-28213# 14# , Wall:0.8~1, ID:≤3.17                 0.0002-82
YZ15113# 14# 16# 19# 25# 17#                 0.006-420
YZ25115# 24#                 0.16-420
YT15113# 14# 16# 19# 25# 17# 18#                 0.006-570
YT25115# 24# 35# 36#                 0.006-720
