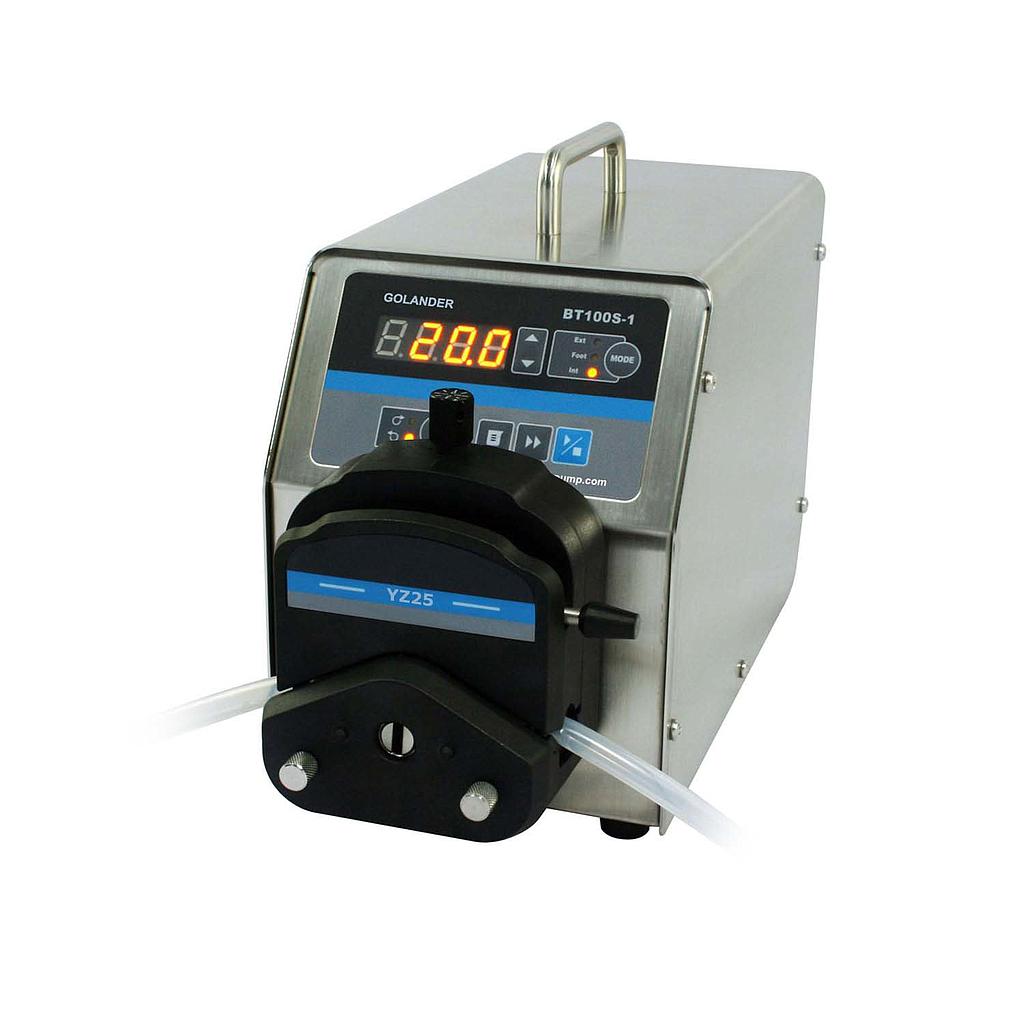

Leadfluid BT100S-1 基本变速蠕动泵 (0.16～720mL/min, 1 CH)
制造商: Leadfluid Model: BT100S-1 P/N: BT100S-1(YT25) 来源: China 保障: 12 Month - 联系
Specifications
Flow range: 0.16～720 mL/min
Speed range: 0.1-150 rpm
Speed resolution (rpm): 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
Speed accuracy: 0.5%
Power supply: AC100-240V,50Hz/60Hz
Power consumption: < 60W
External control: Input level 5V, 12V (standard), 24V (optional). External control analog 0-5V (standard); 0-10V, 4-20mA (optional)
Communication interface: RS485 communication interface, MODBUS protocol is available
Operating condition: Temperature 0-40°C; Relative humidity <80%
IP grade: IP31
Dimensions (L x W x H): 278 x 150 x 237 mm
Weight: 6.5 kg
BT100S-1 Applicable Pump Heads and Tubings, Flow Parameters
| Drive type | Pump head | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
| BT100S-1 | DG6-8 (6rollers) | 8 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 |
| DG10-8 (10rollers) | 8 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-12 (6rollers) | 12 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-12 (10rollers) | 12 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-16 (6rollers) | 16 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-16 (10rollers) | 16 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-24 (6rollers) | 24 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-24 (10rollers) | 24 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DT10-88 | 8 | 13# 14#, Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| YZ15 | 1 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| YZ25 | 1 | 15# 24# | 0.16-420 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| 2 x YZ25 | 2 | 15# 24# | 0.16-420 | |
| 4 x YZ15 | 4 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| 4 x YZ25 | 4 | 15# 24# | 0.16-420 | |
| KZ25 | 1 | 15# 24# 35# 36# | 1-1700 | |
| 2 x KZ25 | 2 | 15# 24# 35# 36# | 1-1700 | |
| DT15-44 | 4 | 19# 16# 25# 17# | 0.07-560 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.16-720 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 0.16-720 | |
| 4 x YT15 | 4 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| 4 x YT25 | 4 | 15# 24# 35# 36# | 0.16-720 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
