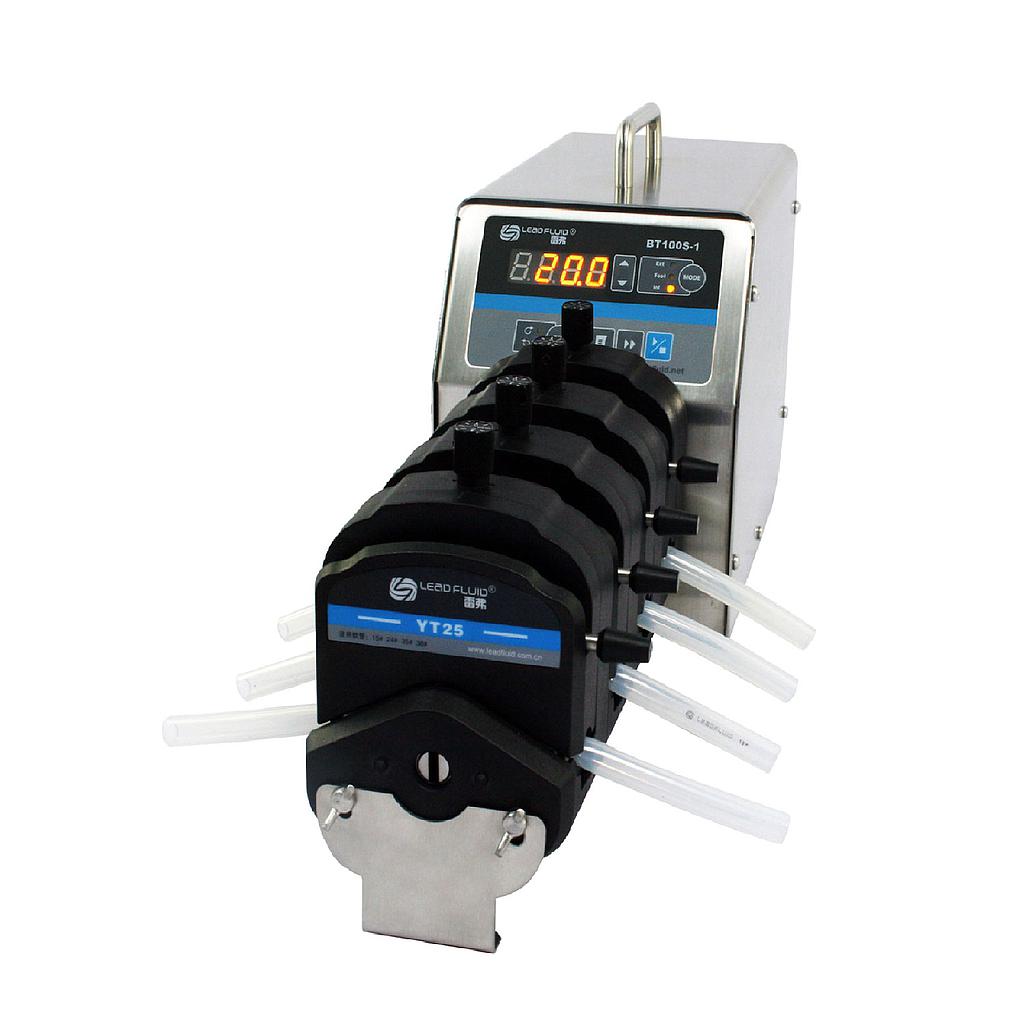

Leadfluid BT100S-1 基本变速蠕动泵 (0.16~720mL/min, 4 CH)

Specifications

Flow range: 0.16~720 mL/min

Speed range: 0.1-150 rpm

Speed resolution (rpm): 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution

Speed accuracy: 0.5%

Power supply: AC100-240V,50Hz/60Hz

Power consumption: < 60W

External control: Input level 5V, 12V (standard), 24V (optional). External control analog 0-5V (standard); 0-10V, 4-20mA (optional)

Communication interface: RS485 communication interface, MODBUS protocol is available

Operating condition: Temperature 0-40°C; Relative humidity <80%

IP grade: IP31

Dimensions (L x W x H):  278 x 150 x 237 mm

Weight: 6.5 kg

Details

BT100S-1 Applicable Pump Heads and Tubings, Flow Parameters

Drive typePump headCh       Tubing size (mm)Flow rate per channel (mL/min)
BT100S-1DG6-8 (6rollers)8     Wall:0.8~1, ID:≤3.17                  0.0002-49
DG10-8 (10rollers)8     Wall:0.8~1, ID:≤3.17                  0.0001-41
DG6-12 (6rollers)12     Wall:0.8~1, ID:≤3.17                  0.0002-49
DG10-12 (10rollers)12     Wall:0.8~1, ID:≤3.17                  0.0001-41
DG6-16 (6rollers)16     Wall:0.8~1, ID:≤3.17                  0.0002-49
DG10-16 (10rollers)16     Wall:0.8~1, ID:≤3.17                  0.0001-41
DG6-24 (6rollers)24     Wall:0.8~1, ID:≤3.17                  0.0002-49
DG10-24 (10rollers)24     Wall:0.8~1, ID:≤3.17                  0.0001-41
DT10-888     13# 14#, Wall:0.8~1, ID:≤3.17                  0.0002-82
YZ151     13# 14# 16# 19# 25# 17#18#                  0.006-570
YZ251     15# 24#                  0.16-420
2 x YZ152     13# 14# 16# 19# 25# 17#18#                  0.006-570
2 x YZ252     15# 24#                  0.16-420
4 x YZ154     13# 14# 16# 19# 25# 17#18#                  0.006-570
4 x YZ254     15# 24#                  0.16-420
KZ251     15# 24# 35# 36#                  1-1700
2 x KZ252     15# 24# 35# 36#                  1-1700
DT15-444     19# 16# 25# 17#                  0.07-560
YT151     13# 14# 16# 19# 25# 17# 18#                 0.006-570
YT251     15# 24# 35# 36#                 0.16-720
2 x YT152     13# 14# 16# 19# 25# 17# 18#                 0.006-570
2 x YT252     15# 24# 35# 36#                 0.16-720
4 x YT154     13# 14# 16# 19# 25# 17# 18#                 0.006-570
4 x YT254     15# 24# 35# 36#                 0.16-720

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
