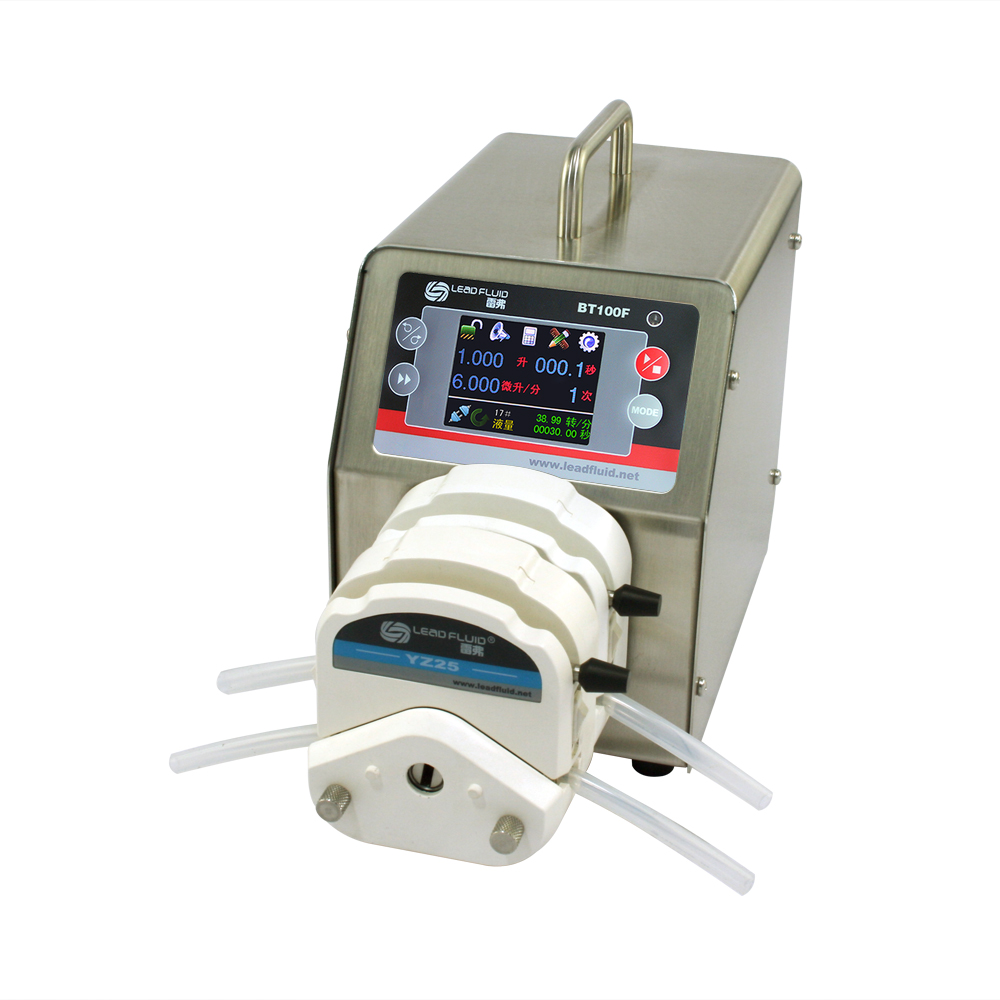

Leadfluid BT100F 智能点胶蠕动泵 (0.006-570mL/min, 2 CH)
制造商: Leadfluid Model: BT100F P/N: BT100F(2xYZ15) 来源: China 保障: 12 Month - 联系
Flow range: 0.006-570 mL/min
Speed range: 0.1-150 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: <40W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
Communication interface: MODBUS RS485
Operating condition: Temperature 0-40°C; Relative humidity <80%
IP grade: IP31
Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
Weight: 4.8 kg ( 10.6 lbs)
Details
BT100F Suitable Pump Heads and Tubing, Flow parameters
| Drive type | Pump head | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
| BT100F
| DG6-1 (6rollers) | 1 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 |
| DG10-1(10rollers) | 1 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-2 (6rollers) | 2 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-2 (10rollers) | 2 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DG6-4 (6rollers) | 4 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
| DG10-4 (10rollers) | 4 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
| DT10-18 | 1 | 13# 14# , Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| DT10-28 | 2 | 13# 14# , Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| DT10-48 | 4 | 13# 14# , Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
| YZ15 | 1 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| YZ25 | 1 | 15# 24# | 0.16-420 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| 2 x YZ25 | 2 | 15# 24# | 0.16-420 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.17-720 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 0.17-720 | |
| DT15-14 | 1 | 16# 19# 25# 17# | 0.07-560 | |
| DT15-24 | 2 | 16# 19# 25# 17# | 0.07-560 | |
| DT15-44 | 4 | 16# 19# 25# | 0.07-330 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
