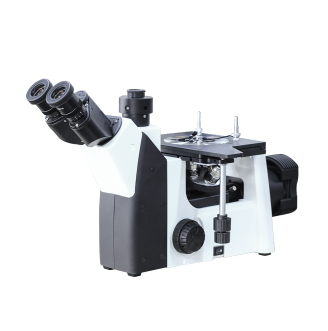

LABTT M-5XC 倒置金相显微镜

Component configuration And specifications:

- High eye point large field flat field eyepiece pl10x / 18mm

- Coarse fine tuning coaxial focusing mechanism at low hand position, coarse moving stroke of 38mm per revolution; Fine tuning accuracy: 0.002mm; Hinged three eyes, 45 ° tilt, adjustable visibility, fixed 8:2 splitting, pupil distance adjustment range: 54mm ~ 75mm

- Long working distance flat field achromatic metallographic objective 5xlmpl5x / 0.13wd15.5mm

- Long working distance flat field achromatic metallographic objective 10xlmpl10x / 0.25 wd8.7mm

- Long working distance flat field achromatic metallographic objective 20xlmpl20x / 0.40 wd8.8mm

- Long working distance flat field achromatic metallographic objective 50xlmpl50x / 0.60wd5.1mm

- Long working distance flat field achromatic metallographic objective 100xlmpl100x / 0.80 wd2.0mm (optional)

- Internal positioning 4-hole converter

- Drop off Cora lighting system, with aperture diaphragm and central adjustable field of view diaphragm, adaptive wide voltage 100v-240v, 6v30w halogen lamp, continuous adjustable light intensity.

- Three storey mechanical mobile platform with an area of 180mm × 155mm, right hand low hand control, stroke: 75mm × 40mm。

- Metal carrier plate (center hole diameter 12)

- Color filter (blue, green, yellow)

- 0.5xctv, C interface, focusing

Magnification: 50x, 100x, 200X, 500X adjustable (standard 10x eyepiece)

LIGHTING: Drop lighting system (halogen lamp), brightness adjustable
