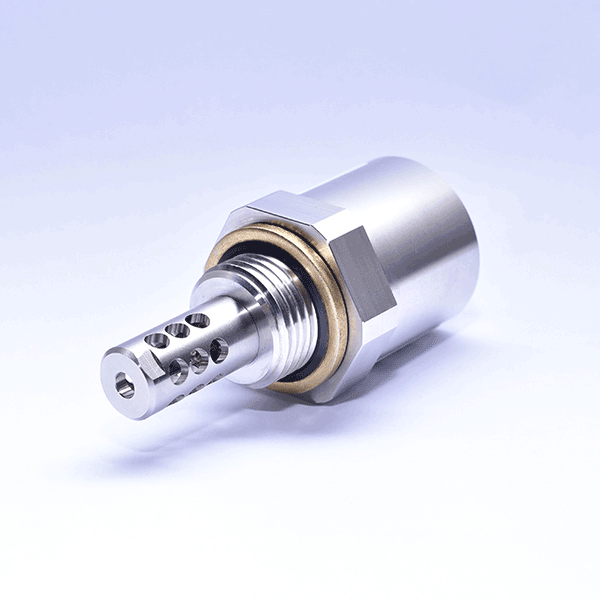

Kongter KT-200 Moisture In Oil Transmitter

Water activity

Measurement range: 0 ~ 1 aw

Response time (typical): < 1 min

Water in oil

Measurement range: 0 ~ 100 ppm (suitable for Mineral transformer oil)

Accuracy: ±10% or 10ppm max

Temperature

Measurement range: -40~ 120 °C

Accuracy (at +25 °C): ± 0.3 °C

Working temperature: -40 … +80 °C

Storage temperature: -40 … +80 °C

Oil temperature permitted : -40 … +120 °C

Output

Digital signal: RS485 MODBUS, RS232 (optional)

Analog signal : 4~20mA, resistive load=500Ω

Others

Housing material: 304 stainless steel

Weight: 220g (transmitter), 270g(package)

Package size: 172×117×53 mm carton

Ingress Protection: IP66

Mechanical connections: G 1/2″ ISO or 1/2″ NPT

Pressure range: Max 100 bar

Resistance load: 250 … 500 Ω

Supply voltage: DC 9V-36V, >DC15V ( use 4-20mA)

Cable specification: M8 6 pin

Cable length: 2 m

Standard applied: CE certified, EN61326-1 EN61326-2-3 standard, ICES-003 B
