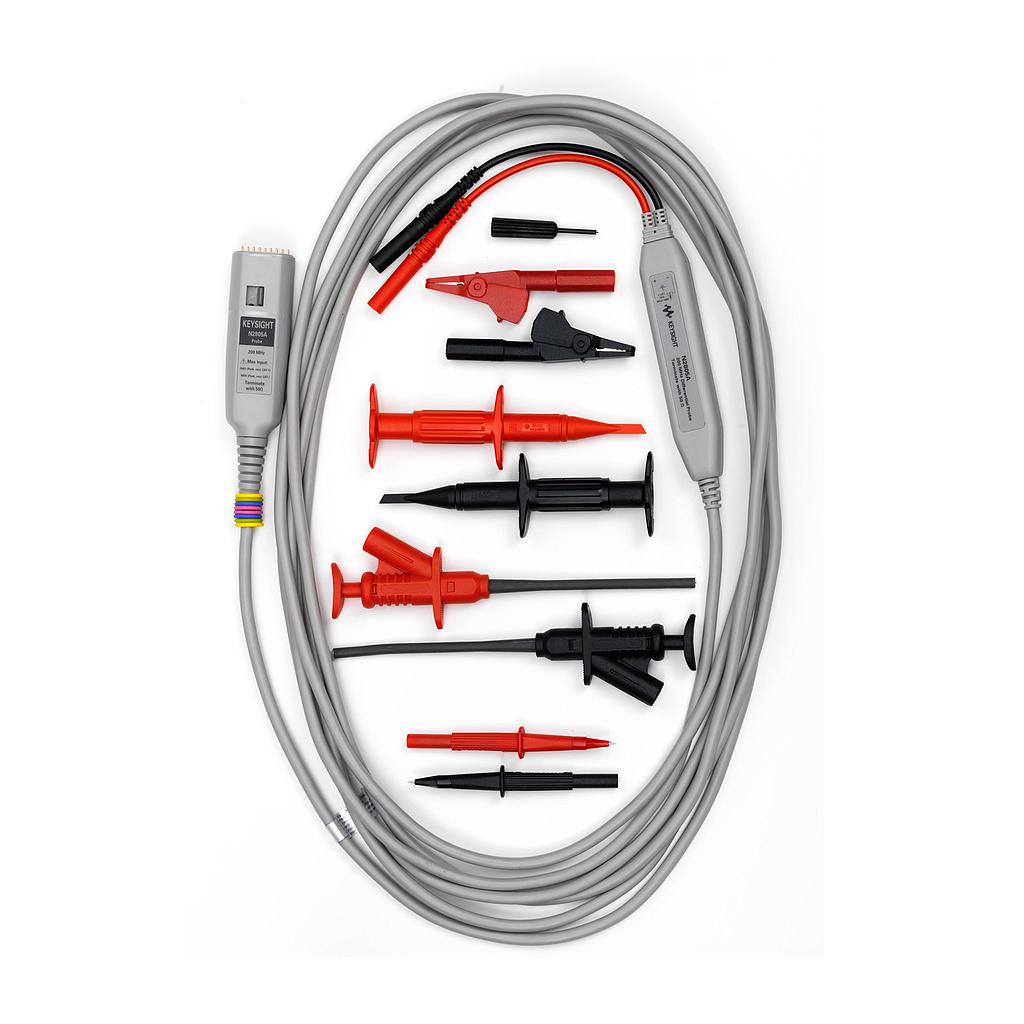

KEYSIGHT N2805A 高压差分探头 (200 MHz, ± 500V)

Bandwidth: 200 MHz

Attenuation: 50:1

Input R//C (each side to ground): 2 MΩ//8 pF

Input R//C (between inputs): 4 MΩ//4 pF

Max differential operating voltage: ± 100 V (DC+ peak AC) and ± 100 Vrms

Max common mode operating voltage:

± 200 V (DC+ peak AC) and ± 200 Vrms CAT II

± 500 V (DC+ peak AC) and ± 500 Vrms (Main Isolated)

Max non-destructive voltage (each side to ground):

± 300 V (DC+ peak AC) and ± 200 Vrms CATII

± 500 V (DC+ peak AC) and ± 500 Vrms (Main Isolated)
