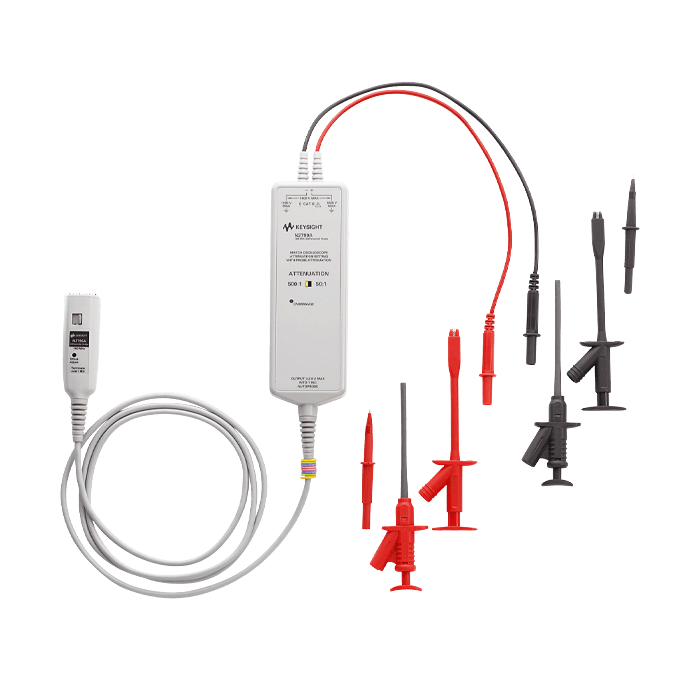

KEYSIGHT N2790A 高压差分探头 (100 MHz, ± 1500V)

Specifications:

Bandwidth: 100 MHz

Attenuation ratio: 50:1 / 500:1

Input R//C (each input to ground): 4 Mohm // 7 pF

Input R//C (between inputs): 8 Mohm // 3.5 pF

Max differential operating voltage (DC+PeakAC or RMS)

± 1400 V at 500:1

± 140 V at 50:1

Max common mode operating voltage (DC+PeakAC or RMS)

± 1000 V (CAT II)

± 600 V (CAT III)

Max nondestructive voltage

± 1500 VDC + Peak AC differential mode

± 1300 Vrms (CAT II) common mode

Output maximum voltage range: ± 2.8 V into 1 Mohm (500:1)
