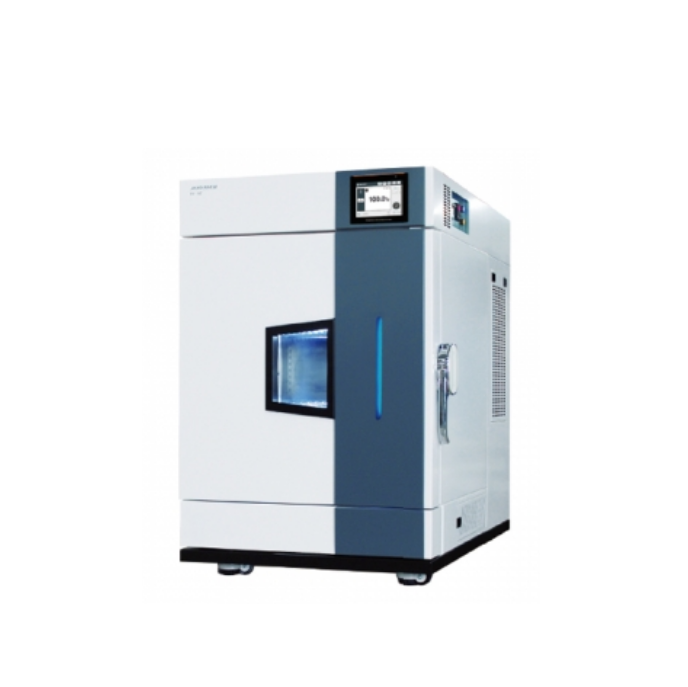

JEIOTECH TC3-KE-100 台式低温试验箱 (100L; -40~150°C)

Range (°C/°F): -40~150/-40~302

Fluctuation at 100°C (°C/°F): 0.3/0.54

Variation at 25°C (°C/°F): 0.5/0.9

Heating time at -40°C~100°C: 60

Cooling time at 20°C~-40°C: 70

Chamber volume (L/cu ft): 100/3.53

Dimension (WxDxH) (mm/inch): 500x380x530/19.7x15x20.9

Quantity of shelves (standard/max.): 2/10

Distance of between shelves (mm/inch): 20/0.8

Max. load per shelf (kg/lbs): 25/55.1

Permitted total load (kg/lbs): 65/143.3

Cable port (Ø, mm/inch): 50/2

Weight (kg/lbs): 150/330.7

Electrical requirements: AC230V, 1ph, 50Hz; 10.8A
