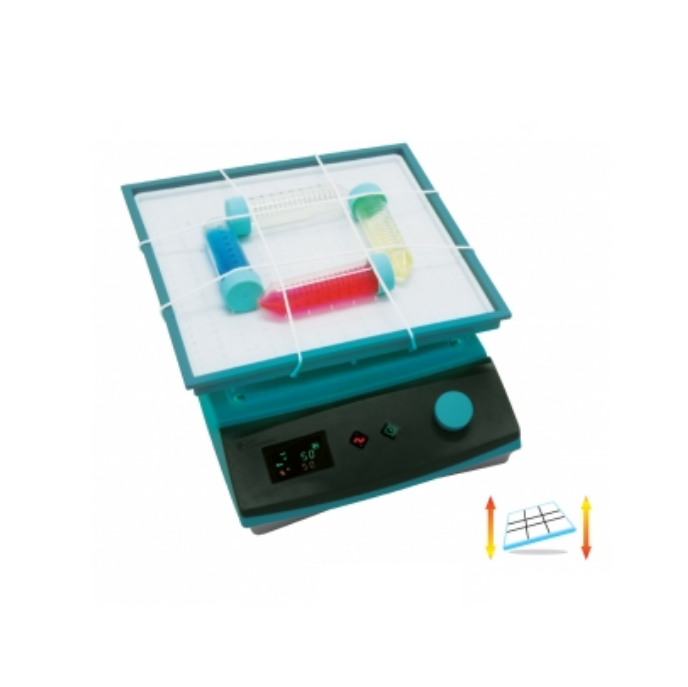

JEIOTECH CRS-350 翘板摇床 (5~100rpm; US plug)

Control system: PID feedback control

Display: VFD

Shaking system

+ Motion type: Rocking

+ Speed range: 5~100rpm

+ Accuracy at 100rpm : ±5

+ Title angle: 7~13°

+ Max. load (kg/Ibs): 5/11.02

Material:

+ Dimpled mat (standard): PP (polypropylene), Silicone

+ Body: PP (polypropylene)

Dimension:

+ Tray (W×D) (mm/inch): 276×276/10.87×10.87

+ Body (W×D×H) (mm/inch): 249×325x109/9.8×12.8×4.3

Net weight (kg/lbs): 3.7/8.16

Electrical requirements: AC 100~240V, 50/60Hz

Standard accessories:

+ Dimpled mat (tray, silicone pad)

+ Rubber bands (2ea)

Optional accessories (see Brochure, page 161):

+ Rubber mat (tray, sticky pad)

+ Universal harness (tray, sticky pad, 6 rubber bands)

Brochure
