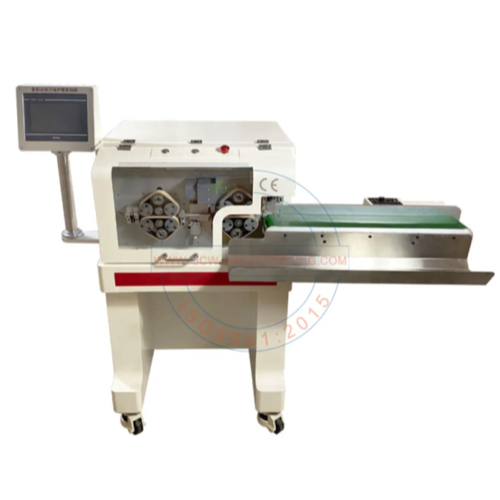

JCW JCW-CS13C Automatic Multi-conductor Cable Processing Center (3 - 10 mm, 150 - 999999 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Outer jacket stripping, Inner insulation stripping, Wire lack sensor, Length correction, Automatic cable collector

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cable size: 3 - 10 mm O.D.

Cutting length (L): 150 - 999999 mm

Cutting length accuracy: 0.002 x L

Single wire: YES

Multi-core cable: Round

Outer jacket stripping length:

Leading (right) side: 250 mm

Trailing (left) side: 70 mm

Inner core stripping length: 15 mm at dual-ends

Production rate: 1100 pcs/h by 500mm wire length [multi-layer stripping]

Data library: 100 programs

Feeding unit: Belt

Display: 7" color touchscreen, English/Chinese [other languages on request]

Compatible peripherals: Cable prefeeder

Rated power: 1200 W

Power supply: AC 110-220 V ± 10%, 50/60 Hz

Air supply: 0.5-0.8 MPa (clean and dry air)


Whole machine: L 1500 x W 800 x H 1300 mm

Conveyor belt: 700 mm

Weight: 135 KG


• High price-performance ratio

• Compactly designed cable processing center

• Cut & strip machine, robot arm, conveyor belt, collect stacker all

in 1

• Saved labor work, increased work efficiency

• Moveable and applicable for various work environments
