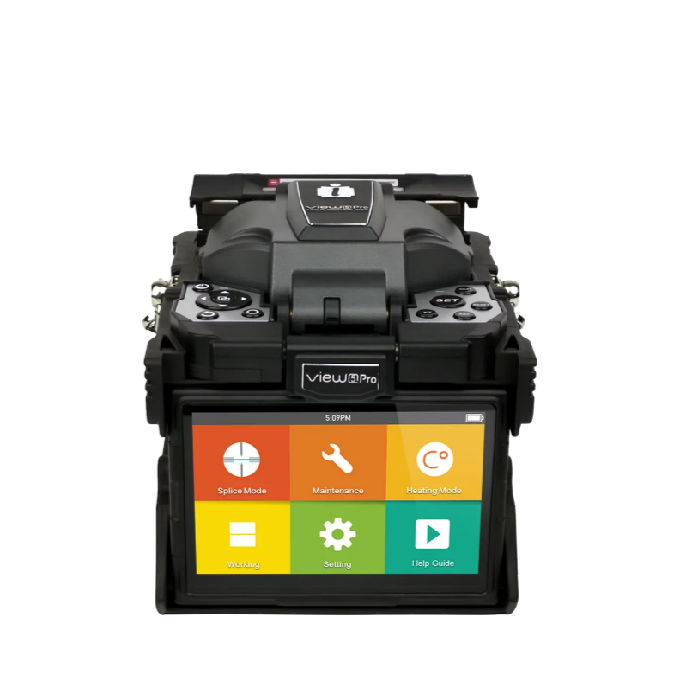

INNO VIEW8 Pro 熔合拼接器 (拼接时间：快速模式：6秒)

Number of fiber: Single

Applicable fibers: SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)

Cladding Diameter: 80~150μm

Coating Diameter: 100~3000μm

Cleaved Length: 5 ~ 16mm

Typical Splice Loss: SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB

Rturn Loss: >>60dB

Estimated Splice Loss: Available

Splice Time: Quick mode : 6 sec (Avg.) / SM Auto mode : 8 sec (Avg.

Splice Mode: Max 128 modes

Heating Sleeve: 20 ~ 60mm

Heating Time: 9 sec (45mm, slim 60mm) , 15 sec (60mm)

Heating Mode: Max 32 modes

Tension Test: 1.96 ~ 2.25N

Dimension: 143W x 158D x 162H mm (with rubber bumper)

Weight: 2.78kg (with battery) / 2.12kg (without battery)

White LED: 2 White LEDs

Monitor: 5.0” Color LCD display, Full touch screen

Fiber View: X, Y, XY, X/Y

Magnification: 320 ~ 520x

Results Storage: 10,000 Splice data / 10,000 Splice image

Power Supply: AC Input 100 ~ 240V, DC Input 9 ~ 14V

Terminal: USBType C / Nano SIM

Battery Capacity: LBT-30, Typical usage: 365 cycles / Power save usage : 450 cycles

GPS: Available
