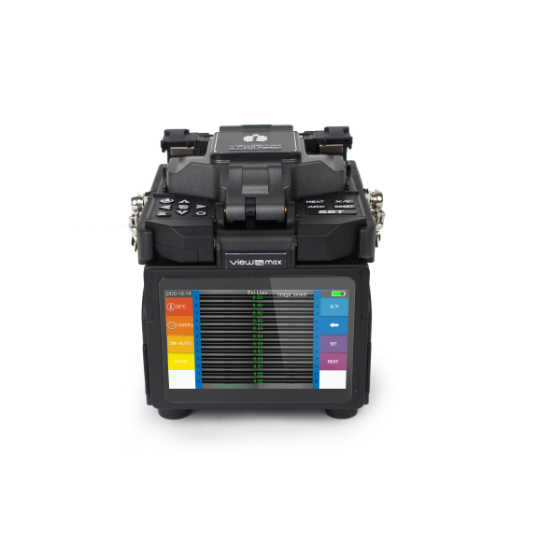

INNO VIEW12R MAX Fusion Splicer (Splice Time: Ribbon Fiber: 15s/ Single Fiber: 9s)

SPECIFICATIONS

Model: VIEW12R MAX

Alignment Method: Clad alignment

Number of fiber: 1 ~ 12

Applicable fibers:  SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)

Cladding Diameter: 125μm

Clevaed Length: 10~13mm

Typical Splice Loss:  SM: 0.05dB/ MM: 0.02dB/ DS: 0.08dB/ NZDS: 0.08dB (ITU-T standard)

Return Loss: >> 60dB

Estimated Splice Loss:  Available

Splice Time: Ribbon Fiber: 15 sec/ Single Fiber: 9 sec

Splice Mode: Max 100 modes

Heating Sleeve: 20 ~ 60mm

Heating Time: Ribbon sleeve (40mm) : 20 sec / Single sleeve (60mm) : 15 sec

Heating Mode: Max 32 modes

Tension Test: 1.96 ~ 2.25N

Dimension: 160H x 133W x 155D mm (excluding rubber bumper) / 167H x 143W x 163D mm (including rubber bumper)

Weight: 1.98kg (without battery) / 2.64kg (with battery)

White LED: 3 White LEDs

Monitor: 5.0” Color LCD display, Full touch screen

Fiber View & Magnification: X, Y, XY, X/Y: 250X Magnification

Results Storage: 10,000 Splice data / 10,000 Splice image

Power Supply: AC Input 100 ~ 240V, DC Input 9 ~ 14V

Terminal: USB2.0 / TypeC

Battery Capacity:  LBT-30, Typical usage: 220 cycles / Power save usage : 260 cycles

Electrode Life: 3000

ENVIRONMENTAL CONDITION & TEST

- Operating Condition:

Altitude: 0 ~ 3660m

Humidity: 0 ~ 95%, non-dew

Temperature: -10 ~ 50 ºC

Wind: up to 15m/sec

- Storage Condition:

Humidity: 0 ~ 95%, non-dew

Temperature: -40 ~ 80 ºC

- Resistance Tests:

Shock Resistance : 76cm for bottom surface

Exposure to Dust : 0.1 to 500um diameter aluminium silicate

Rain Resistance : 10 mm/h for 10 mins
