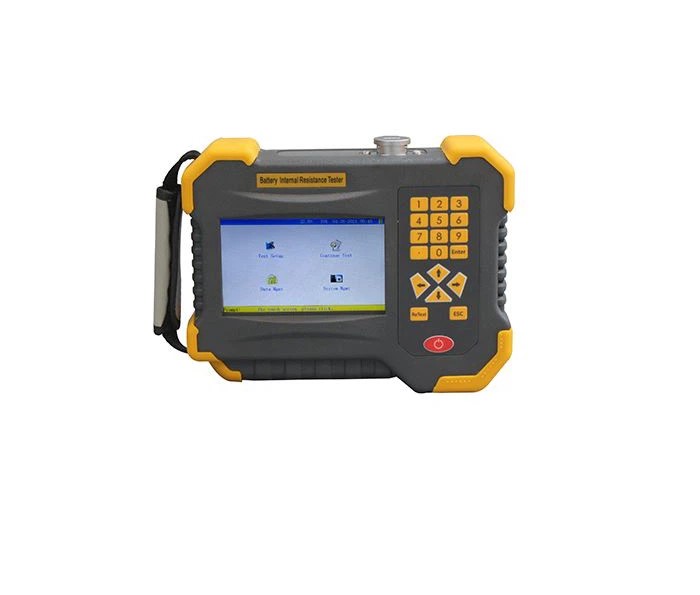

Huazheng HZND-600 Battery Internal Resistance And Conductivity Tester

Measuring range:

Conductivity: 20～19,990S

Internal resistance: 0.000mΩ-99.999mΩ

Voltage: 0.000v--25v

Minimum measurement resolution:

Conductivity: 1S

Internal resistance: 0.001mΩ

Voltage: 1mV

Measurement accuracy:

Conductivity: ±0.5%rdg ±6dgt

Internal resistance: ±0.5%rdg ±6dgt

Voltage: ±0.2%rdg ±6dgt

Power supply: 11.1V, 2400mAh, rechargeable lithium battery

Power consumption: Can work continuously for 8 hours

Storage: 64Mbit Flash+4G 8G SD card

Monitor: 5 inch color touch screen

Size: 220 x 170 x 52mm

Weight: 1.5Kg

Working environment: 0～60℃, 95%RH

Storage temperature: -20℃～82℃
