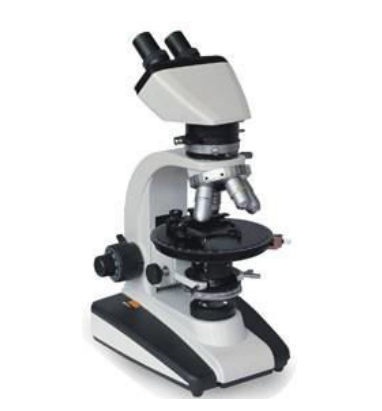

HINOTEK XP-501 透射偏光显微镜 (4X-63X(S))

Viewing Head: Sliding Binocular Head. Inclined at 45° ( 52mm -74mm )

Eyepiece: WF10X/18mm; 10X gridding eyepiece; 10X with reticule

Objective: Achromatic objective: 4X, 10X, 25X, 40X (S), 63X(S)

Stage: Round revolving stage Stage dia: 60mm; Rotatable: 360°

Condenser: Swing type N.A1.25 Abbe condenser with iris diaphragm & filter

Focusing: Coaxial coarse&fine focusing adjustment with rack and pinion mechanism; Fine focusing scale Value 0.002mm

Collector: High brightness light collector

Light source: Halogen tungsten bulb 6V/30W.AC 85V-230V; Adjustable brightness

Optional Accessory: 1.30 Mega pixels CMOS electronic eyepieces
