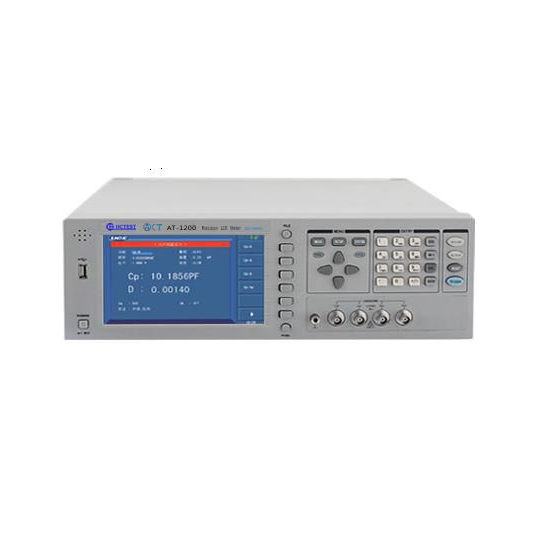

HCTEST AT-1200 精密LCR表 (20Hz~2MHz; 10mHz step)

Test Freq: 20Hz~2MHz (10mHz step)

Basic Accuracy: 0.05%

Equivalent Circuit: Series, Parallel

Comparator: Upper and Lower test limits in units and percentage

Test mode: Auto, Continued, Manual

Touch mode: Internal, Manual, External

Test speed (≥1kHz)

+ Fast: 75t/sec

+ Medium: 12t/sec

+ Slow: 3t/sec

Average number: 1~255

Delay Time: 0~60s, 1ms step

Calibration: open/ short/ load

Test configuration: Five end

Display mode: Δ,Δ%,V/I (Voltage/ current monitoring)

LCD: 7' LCD

Test signal:

+ Freq.: 20Hz~2MHz

+ Output impedance: 30Ω,100Ω,50Ω, 10/CC

+ Test Volt.: 5mV~2V; Accuracy: 10%

+ Memory: 100(Internal). 500 (External)

+ Interface: RS232C. HANDLER, USB HOST (OPTION GPIB)

Temp. Humidity: 0~40°C,  ≤90%RH

Power Volt.: 110V±10%; or  220±10%

Power Freq.: 47.5Hz~63Hz

Power consumption: ≤80VA

Size (W×H×D): 398×129×370mm

Weight: ≈9kg

Details

Test Item

| Z|, |Y|, C, L, X, B, R, G, D, Q, θ,DCR
