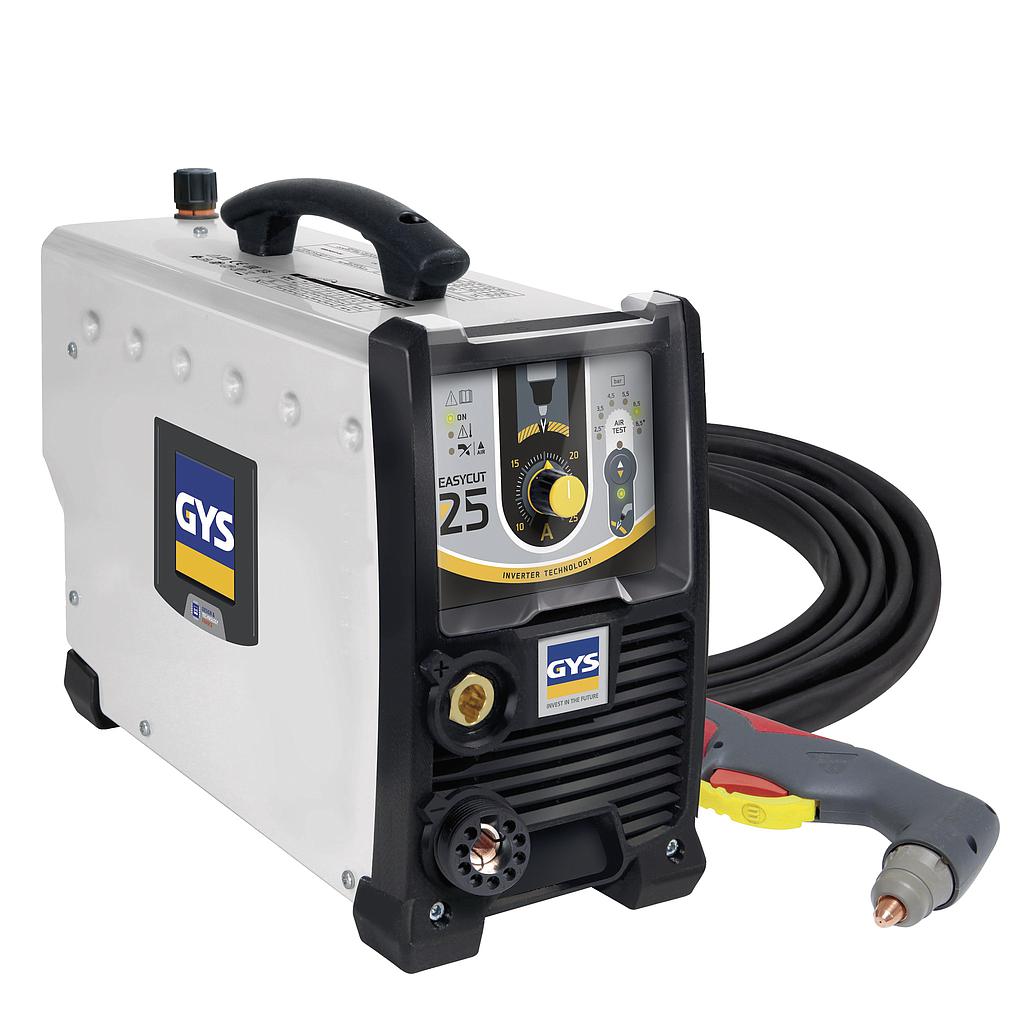

The ultra-compact EASYCUT 25 and 40 plasma cutters are ideal for easily cutting all types of metal up to 20 mm thick. With a power rating of up to 40 A, they excel at low-current precision cutting. Ideal for the workshop, they offer true portability without sacrificing cutting performance.
■ Compact and lightweight, they provide excellent mobility.
■ Easy-to-use control panel with a single potentiometer for adjusting the cutting intensity.
■ No HF arc ignition to avoid electromagnetic interference.
■ Manual air pressure adjustment (2.5 < 6.5 bar) with front bar graph.
■ Equipped with a 4 m detachable torch with trigger safety device
Power Supply: 230 V, 1 ph, 50/60 Hz
Fuse: 16 A
Cutting current range: 10-25 A
Duty cycle (environment temp. 40°C)
Imax 25 A / 90 V
@ 60% 15 A / 86 V
@ 100% 10 A / 84 V
No load voltage: 420 V
Recommended air flow rate: 115 L/min
Recommended air pressure: 2.5 > 6.5 bar
Protection class: IP 21
Dimensions (L x w x h): 42 x 15 x 30 cm
Weight; 7.8 kg
Standard IEC 60974-1/10 A
Equipped torch: TPT 25 - 4 m
Included accessories: Torch TOPARC TPT 25, 4 m + Earth cable 2 m
