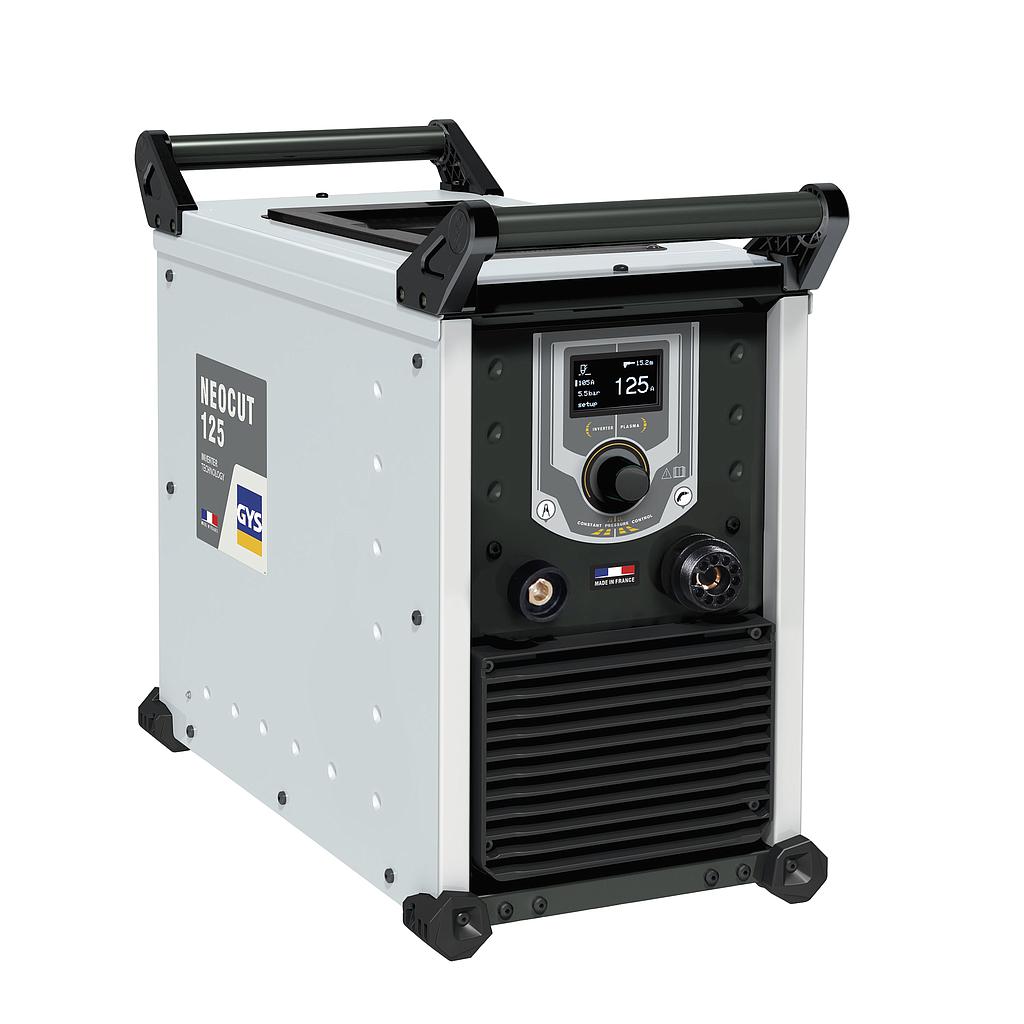

GYS NEOCUT 125 等离子切割机 (400V, 3ph, 20-125A, earth cable 4m)

With a high capacity for manual or mechanised cutting, NEOCUTs are the ideal solution in industrial environments. Its 100% duty cycle up to 125 A enables it to cut parts up to 57 mm thick. Equipped with automatic air pressure management, they offer optimal cutting quality throughout the life of the consumables.

■ Automatic management of pressure and air flow according to the set  current.

■ Six working modes: cutting, trigger-lock cutting, gouging,  triggerlock gouging, cutting of perforated sheets and marking.

■ Marking mode, ideal for tracing and identifying parts.

■ No HF arc ignition to avoid electromagnetic interference.

■ Pre-wired for use on automatic cutting table (optional analogue/ digital CNC kit).

■ Monitored wear and tear of consumables (nozzle and electrode).

■ Easy software updates via USB cable with no tools or disassembly required.

■ OLED display and multilingual interface: easy to use, with all settings at the touch of a button.


Input voltage supply: 400 V - 3 ph, 50/60 Hz

Current: 63 A

Cutting current range: 20-125 A

Duty cycle (environment temp. 40°C)

- Cutting:

   @ 60%: -

   @ 100%: 125 A / 130 V

- Gouging:

   @ 60%: -

   @ 100%: 125 A / 150 V

No-load voltage: 356 V

Recommended air flow rate: 305 L/min (cắt thủ công)

Recommended air pressure: 5 > 9 bar

Protection class: IP 23

Recommended generator: > 30 kW

Dimensions (L x w x h): 69 x 40 x 61 cm

Weight: 36 kg

Standard: IEC 60974-1/10 A

Recommended manual cutter: MT-125

Included accessories: Earth cable, 4 m
