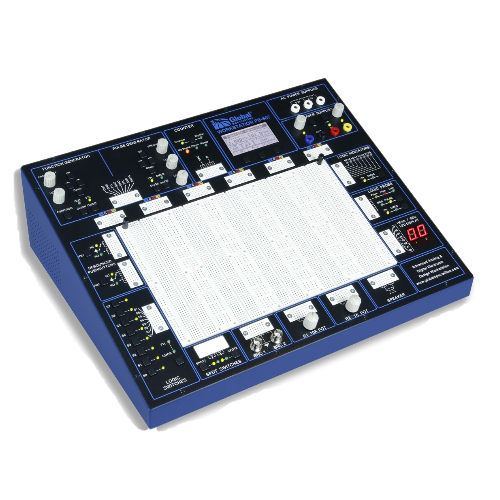

GLOBAL PB-507 高级模拟和数字电子设计培训套件

Power: 3-wire AC input with 110 V / 220 V selector switch

Power Supplies:

 + Fixed 5 VDC @ 1 A

 + Variable -20 to +20 VDC @ 0.5 A

 + Fixed 12.6 VAC center-tapped @ 100 mA

Computer Interface: USB 2.0

Function Generator:

 + Frequency Range: 0.1 Hz to 1 MHz selectable in 7 ranges

 + Output Voltage: 10 Vpp + Output Impedance: 600 Ω ±2%

 + Output Mode: TTL or CMOS (switch selectable)

 + Output Waveforms: Sine, square, triangle

Pulse Generator:

 + Frequency Range: 0.1 Hz to 1 MHz selectable in 7 ranges

 + Output Voltage: 15 Vpp

 + Output Mode: TTL or CMOS (switch selectable)

 + Duty Cycle Range: 10 to 90%

Dimensions: 5.5” x 16.5” x 12.75” (H x W x D)

Weight: 14.5 lbs
