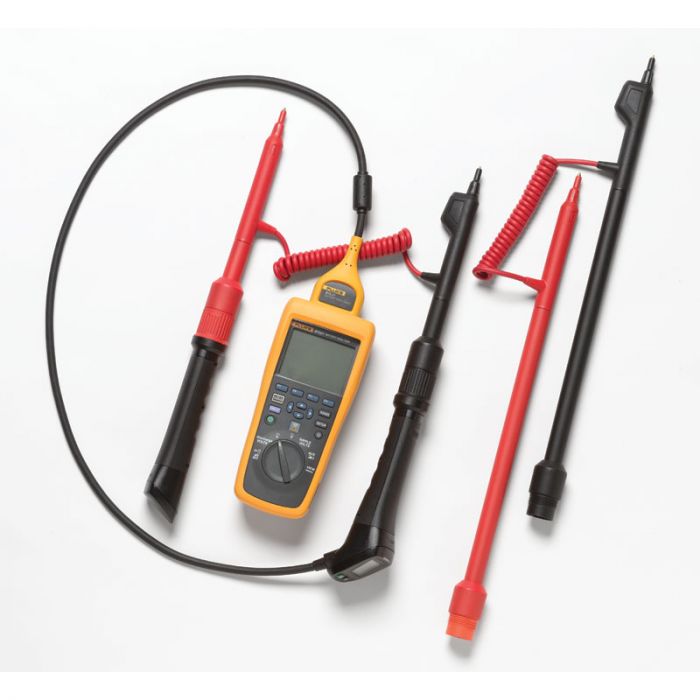

FLUKE FLUKE-BT520 电池测试机
制造商: FLUKE Model: FLUKE-BT520 P/N: 4489981 - 报价要求
- 联系
Battery/Strap Resistance
Range
3 mΩ
30 mΩ
300 mΩ
3000 mΩ
Resolution
0.001 mΩ
0.01 mΩ
0.1 mΩ
1 mΩ
Accuracy
1% + 68
0.8% + 12
0.8% + 6
0.8% + 6
V DC
Range
6 V
60 V
600 V
Resolution
0.001 V
0.01 V
0.1 V
Accuracy
0.09% + 5
0.09% + 5
0.09% + 5
V AC (45 to 500 Hz with 800 Hz Filter)
Range: 600 V
Resolution: 0.1 V
Accuracy: 2% + 10
Frequency (Displayed with V AC and A AC)
Range: 500 Hz
Resolution: 0.1 Hz
Accuracy: 0.5% + 8
AC Voltage Ripple (20 KHz Maximum)
Range
600 mV
6000 mV
Resolution
0.1 mV
1 mV
Accuracy
3% + 20
3% + 10
Includes:
Battery analyzer
4-wire test pin (set)
BTL10 Basic Test Lead (set)
TL175 TwistGuard™ Test Leads with adapter
BTL20 Intelligent Test Probe Set, with extender (no temperature sensor)
BP500 lithium-ion battery
BC500 AC charger
mini-USB cable
Shoulder strap
Belt strap
Magnetic hanging strap
FlukeView® Battery Management Software
Soft carrying case
Spare fuses (2)
Battery tags
Zero Ohm Calibration Resistor
