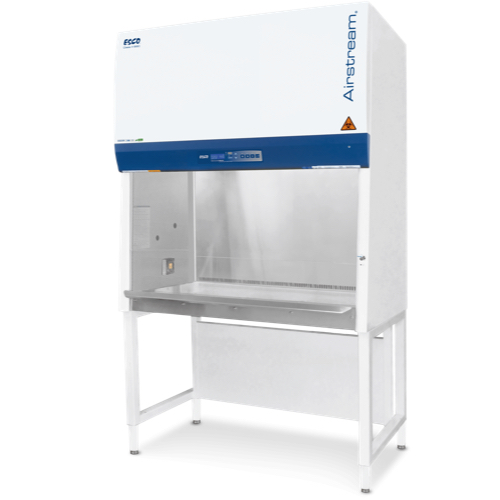

ESCO AC2-4S8-TU Biological Safety Cabinet (Class II, 220-240 VAC, 50/60 Hz, 0.56 m²)

Stainless Steel Side: 220-240 VAC, 50/60 Hz

Nominal Size: 4 ft

External Dimensions (W x D x H):

Width: 1340mm

Depth without arm rest: 767 mm

Depth with arm rest: 823 mm

Height: 1400 mm

Gross Internal Dimensions (W x D x H):

Width: 1220 mm

Depth: 580 mm

Height: 654 mm

Usable Work Area: 0.56 m²

Tested Opening: 175 mm

Average Airflow Velocity:

Inflow: 0.48 m/s (95 fpm)

Downflow: 0.35 m/s (69 fpm)

Airflow Volume:

Inflow: 369 cmh

Downflow: 876 cmh

Exhaust: 369 cmh

Required Exhaust with Optional Thimble Exhaust Collar: 554 m³/h

Static Pressure for Optional Thimble Exhaust Collar: 38 Pa / 0.12 in H2O

ULPA Filter Typical Efficiency:

>99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA

>99.999% at MPPS, H14 as per EN 1822 EU

Sound Emission per EN 12469: 51.7 dBA

LED Lamp Intensity: 1193 lux

Cabinet Construction:

Main body: 1.2 mm (0.05") 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester ISOCIDE™ antimicrobial powder-coated finish

Work Zone: 1.5 mm (0.06") 16 gauge stainless steel, type 304, with 4B finish

Side Walls: 1.5 mm (0.06") 16 gauge stainless steel, type 304, with 4B finish

Electrical Cabinet Full Load:

Amps (FLA): 10

Heat Load (BTU/Hr): 682

Maximum Power Consumption (5A EOs included): (W): 1880

Nominal Power Consumption: (W): 200

Net Weight: 236Kg (421 lbs) Cabinet only, excludes optional stand.
