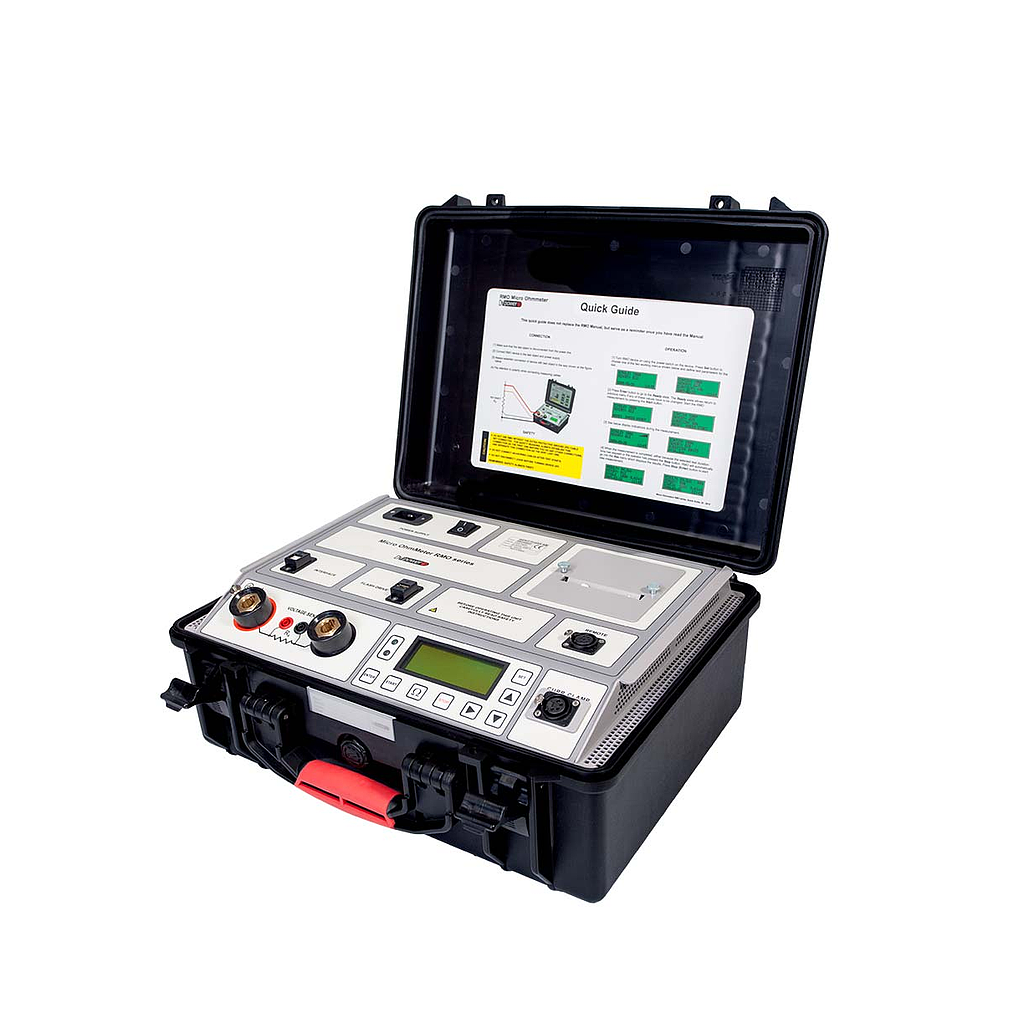

DV Power RMO200G 微欧姆计 (0,1 µΩ – 999,9 mΩ)

Mains power supply

• Connection according to IEC/EN60320-1; C320

• Mains supply: 90 V – 264 V AC

• Frequency: 50 / 60 Hz

• Power consumption:

@ 230 V AC (1815 VA)

@ 115 V AC (1810 VA)

• Fuse: type F (12 A / 230 V )

Output data

• Test current ranges (from 0 to Imax) and maximum load capacity at 25°C (77°F) ambient temperature:

Current: 200 A

Max.load capacity: 150s

• Full Load Voltages at maximum current

@ 230 V AC (6,80 V)

@ 115 V AC (5,90 V)

Measurement

• Resistance range: 0,1 µΩ – 999,9 mΩ

*Expandable up to 6 Ω

• Resolution:

0 – 999,9 µΩ; 0,1 µΩ

1,000 mΩ – 9,999 mΩ; 1 µΩ

10,00 mΩ – 99,99 mΩ; 10 µΩ

100,0 mΩ – 999,9 mΩ; 0,1 mΩ

Resolution on optional ranges:

(0 – 99,99 µΩ 0,01 µΩ)*

(1,000 Ω – 6,000 Ω 1 mΩ)**

• Typical accuracy ± (0,1 % rdg + 0,1 % FS)

Display

• LCD screen 20 characters by 4 lines;

• LCD display with backlight, visible in bright sunlight.

Interface

• RMO-G is equipped with an USB port

• optional: RS232

• optional: Bluetooth communication interface

Test Result Storage

• RMO-G can store up to 500 measurements

Printer (optional)

• Thermal printer

• Paper width 58 mm / 2.3 in

Dimensions and weight

• Weight: 8 kg/17,6 lbs

• Dimension (W x H x D) mm / in: 405 x 165 x 330 mm (7.8 x 10 x 15 in)


Details

Brochure
