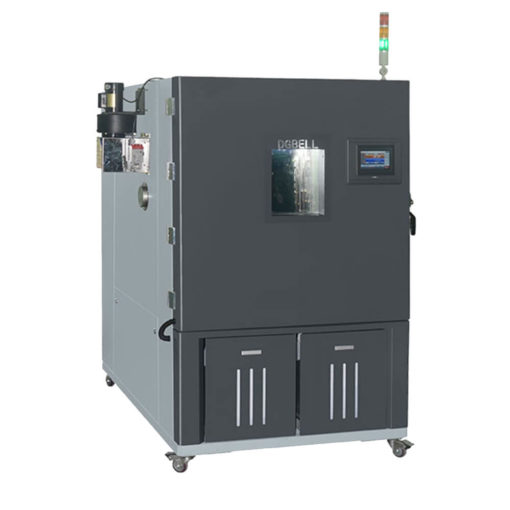

DGBell BTH-1000D 温度循环试验箱 (1000L,-70℃ ~ +150℃)

Effective Volume: 1000L

Internal Dimension:W1000 X H1000 X D1000mm (Can be customized)

External Dimension:W1200 X H2250 X D2400mm(including the motor height for the top of the chamber)

Temperature Range:-70℃ ~ +150℃(Can be customized)

Humidity Range:20%RH-98%RH (Limit temperature section, see the regional figure )

Temperature Fluctuation:±0.5℃

Humidity Fluctuation:±2.5%RH

Temperature Deviation:≤±2.0℃

Humidity Deviation:A)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH。

Temperature Uniformity: ≤±1.0℃

Heating Rate:0.1~1.2℃/min(From -40℃ up to +80℃ ,average, linear with load)

Cooling time:0.1~1.2℃/min(From -40℃ up to +80℃ ,average, linear with load)

Temperature Overshoot:≤±2℃

Maximum Load:20KG

Constant Max. Heating Load:No

Noise:≤70dB(A Level)

External Material:Galvanized sheet with high temperature electrostatic resin coating at both sides.

Internal Material:1.2 mm thickness SUS# 304 heat and cold resistant stainless steel with seal welding.

Control Method:Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning.

Compressor:Semi-Hermetic Compressors BOCK (Germany)

Observe Window:With 3-layers vacuum glass observation window on the door(W430mm*H580mm) ; Door frame with electric heat function (auto adjustable), anti-frosting, anti-condensing devices, ensures clear observation of the specimen under testing

Power Supply:AC 380V 50HZ 14.0KW

Auxiliary Function:Explosion-proof pressure relief device, explosion-proof chain, mobile phone alarm device, networking, smoke exhaust device, fire extinguishing device, etc.
