Water Tank Internal Dimension:W3500 X D2500 X H1200mm (can be customized)
Space Occupation: W6000 X D5000 X H5000mm

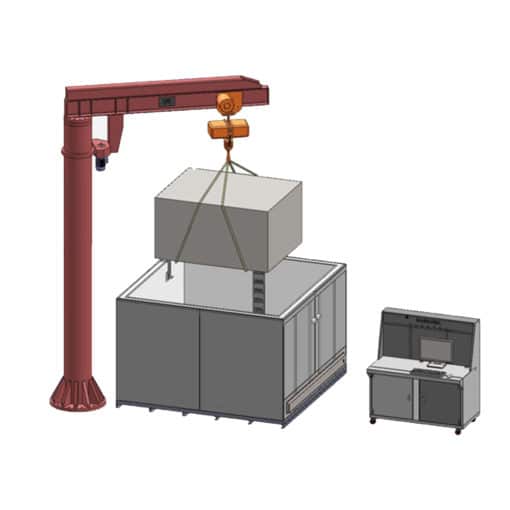

Single Crane:Cantilever Lifting, Rotatable, Multi-dimensional Lifting
Travelling Crane:Traveling crane can move up/down and move forward/backward. It is easy to install the test object.
Lifting belt:For immobilizing the test object when lifting
Water Tank Material:PP plate(Insulation and corrosion resistance) Or directly digging a pool on the ground, concrete casting structure, and paste bright colored tiles.
Max Load:1000KG (can be customized)
Equipment Weight:Approx 3.5 Tons
Power Supply:AC 380V, 7.0KW
Other requirements:Automatic filling and draining water system.*Brine mixing system.
On-line monitoring of brine concentration, manual addition of salt, automatic detection of concentration.
PLC touch screen control + Computer remote control system.
The video monitoring system, Lighting system..
