DEFELSKO HHDKIT 高压漏磁检测器 (0.5~35kV, with long rod)

Output Voltage Range: 0.5~35kV

Output Voltage Adjustment:

  • 0.5 kV~1 kV: 10 Volt Steps

  • 1 kV~35 kV: 100 Volt Steps

Output Accuracy: ±5%

Pulse Duration: 10μs

Pulse Repetition Rate: 30Hz

Coating Thickness Range: up to 20mm (780mils)

Battery Size: 72Wh Li-ion

Typical Battery Life

for selected rolling springs @ 10kV:

  • Ø12” 40 hrs

  • Ø40” 30 hrs

Operating Temperature: -20~60°C (-4~140°F)

Unit size: 64x6.4x13cm (25"x2.5"x5")

Unit weight: 1.6kg (3.6lbs.) with 72Wh battery (no electrodes)

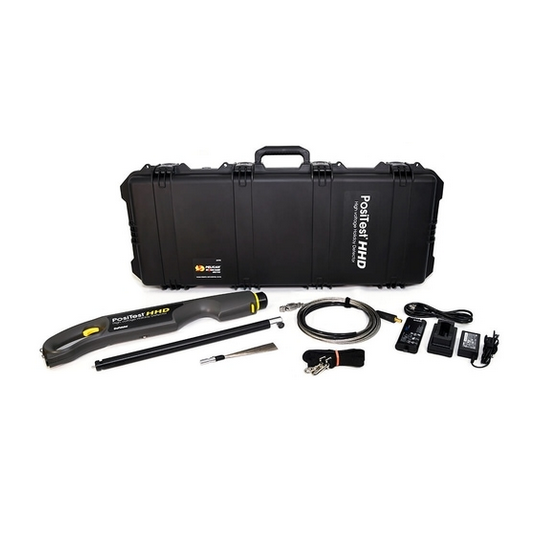

KITS COME COMPLETE with:

Holiday detector, 7.6 m (25’) ground (earth) cable with ground clip, Li-ion battery pack with built-in charge state indicator, Smart charger with universal AC voltage input, Stainless steel fan brush, 50cm (20”) electrode rod with thumb screw, Instructions, Durable hard shell case, Long Form Certificate of Calibration traceable to NIST
