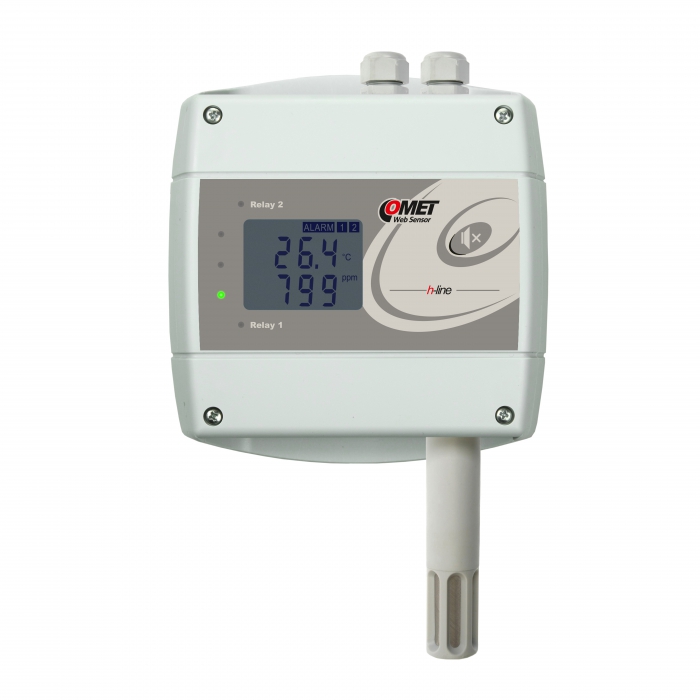

Comet H6520 Remote CO2 concentration thermometer hygrometer (9-30 Vdc, Ethernet)

Measured value: Temperature, Relative humidity, Counted values (dew point…), CO2

Temperature sensor:

   Measuring range: -30 to +80 °C

   Accuracy: ±0.4 °C

   Resolution: 0.1 °C

Humidity sensor:

   Measuring range: 0 to 100 % RH

   Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C

   Resolution: 0.1% RH

Dew point:

   Measuring range: -60 to +80 °C

   Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %

   Resolution: 0.1 °C

CO2 sensor:

   Measuring range: 0 to 2000 ppm

   Accuracy: ±(50ppm +2% from reading) at 25°C and 1013hPa

   Resolution: 1 ppm

Relay outputs:

   Quantity: 2

   Maximal voltage: 50 V

   Maximal current: 2 A

   Maximal power: 60 VA

Operating temperature: -30 to +60 °C

Channels: internal temperature, humidity and CO2 sensor

Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Acoustic alarm: from built-in beeper - switchable

Output: Ethernet

Measuring interval: 2 s; CO2: 15 s

Available temperature units: degrees Celsius, degrees Fahrenheit

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail (SMTP authentication is supported), SNMP Trap, Syslog

Power: 9-30 Vdc

Protection class: IP30

Dimensions: 136 x 213 x 45 mm; stem length: 75mm

Weight: approx. 340 g

Included in delivery:

   H6520

   Instruction Manual

   Traceable Calibration Certificate

   FREE software TSensor for Configuring of the Transmitter

   COMET Cloud for 3 Months

Details

Datasheet
