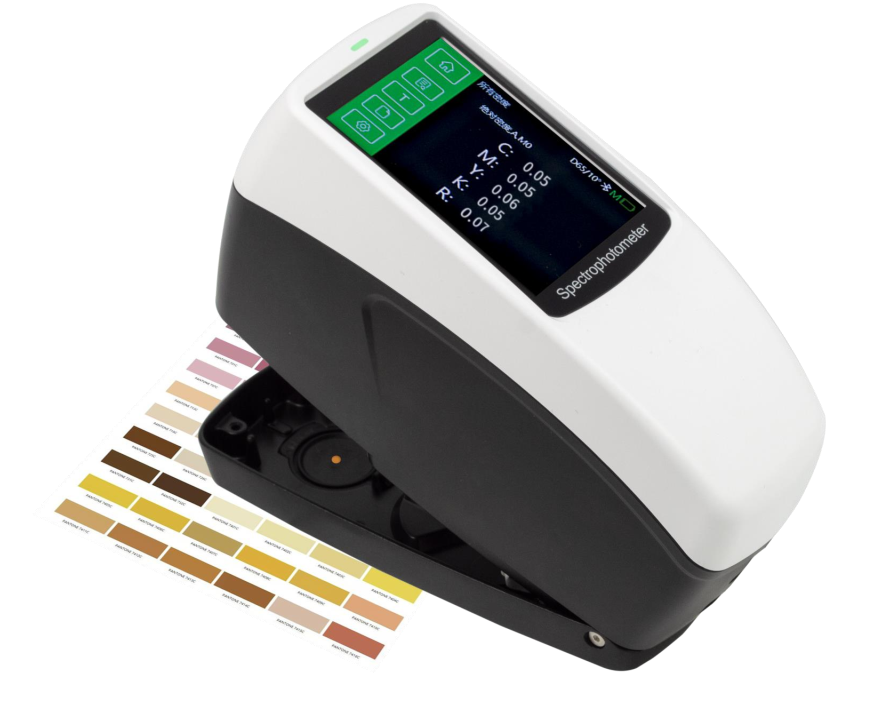

CHN SPEC DS 530 Color Densitometer (Ф11mm, 10mm, 6mm, Ф5mm,3mm)

Measuring Structure: D/8,SCI+SCE

NetProf network calibration: Có

Intergrated physical positioning holes: Support

Measurement repeatability: dE*ab 0.02

Display accuracy: 0.01

Lightning source: Full-band balanced LED light source

UV light source: Yes

Caliber: Ф11mm, 10mm, 6mm, Ф5mm,3mm

Measurement standard: Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB color difference (ΔΕ*ab, Δ E*cmc, ΔΕ*94, ΔΕ*00), whiteness (ASTME313-00, ASTME313 -73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBerger Stensby) yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73) blackness (My, dM), stain fastness, color fastness, Tint (ASTM E313-00 ) Color density CMYK (A, T, Ε, Μ), metamerism index Milm, Munsell, hiding power, strength (dye strength, tining strength)

Software support: Android, iOS, Windows, WeChat, Hongmeng

Accuracy quaranteed: Ensure measurement is qualified

Field of view: 2°, 10°

Integrating sphere diameter: 40mm

Follow standards: CIENo.15,GB/T3978,GB2893,GB/T18833,ISO7724-1,ASTME1164,DIN5033Teil7

Spectral method: High-precision nano spectroscopic device

Sensor: Silicon photodiode array dual 16 groups

Wavelength interval: 10mm

Wavelength range: 400-700nm

Reflectivity measurement range: 0-200%

Reflectance resolution: 0.01%

Measure time: about 1s

Interface: USB, bluetooth

Screen: Full color screen, 3.5 inches

Battery capacity: Can continuously measure 800 times on a single charge, 7.2V/ 3000mAh

Light source life: 5 million times

Language: Simplified Chinese, English

Storage: Instrument: 10.000 items, APP: Mass storage
