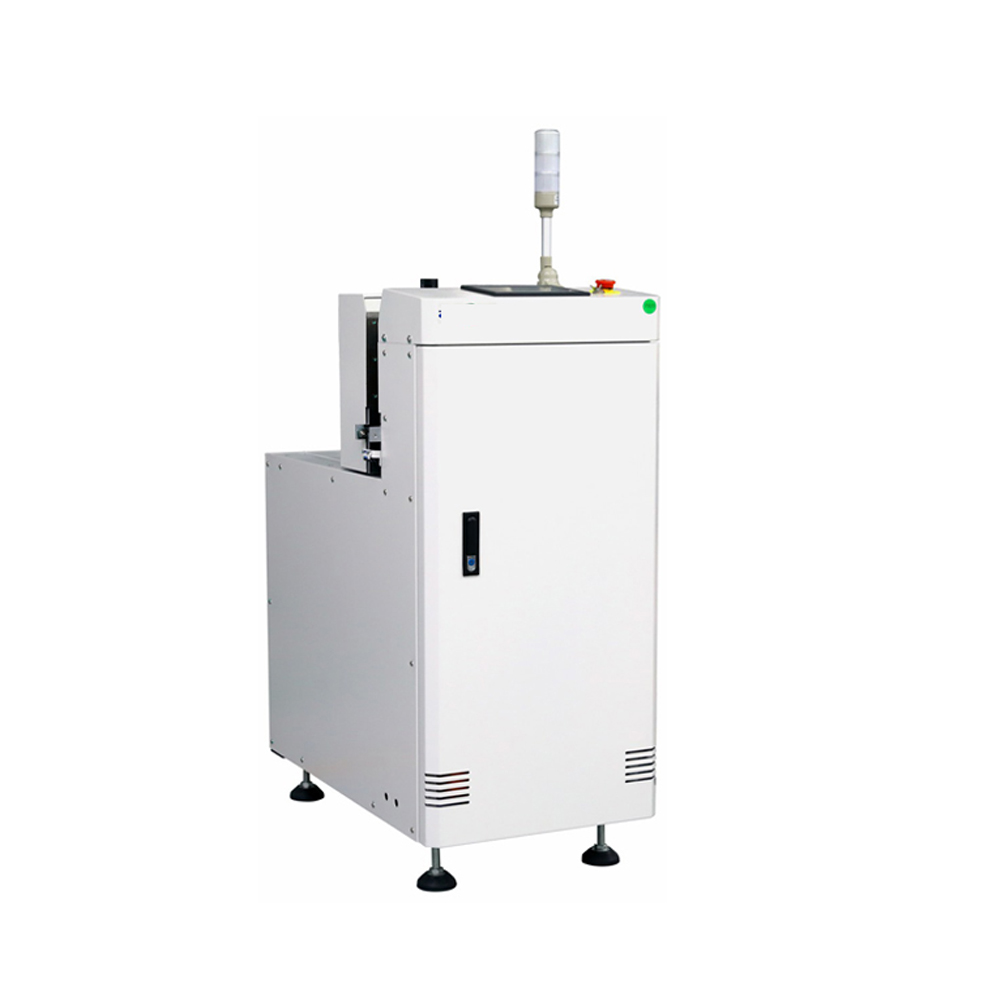

Censtar LC-460W-TN PCB Stacker unloader (503*898*1200mm, 50*50-460*460mm)

Dimension(L*W*H):        503*898*1200mm

PCB size(L*W):        50*50-460*460mm

Maximum PCBs capacity:        400pcs(0.6mm thick PCB)

Quantity of rail:        Single rail

Belt type:        4mm flat belt

Load bearing:        2kg/PCB

Transport height:        900±20mm(or custimzie)

Cycle time:        10 Seconds or specity

Power supply:        AC 220V±10V, 50/60HZ

Power:        Max 100VA

Air prssure:        4-6bar

Air consumption:        10itr/min max

Screen size:         7 inch

PCB thickness :        Minimum 0.6mm thickness

Transport direction:        L-R or R-L

CE:         Yes

PLC:        Yes

SMEMA:        Yes

Weight:        180kg

Details

This equipment is used for PCB bare board material unloader operation on the production line.

Features

1.User friendly soft touch LED membrance control panel or touch screen can be selected

2.Aluminum structure ,bottom weight design,not easy to shift

3.By pass mode provide

4.Smooth and precise translation (stepper motor)

5.Increased load without interference

6.Minimize clearance between conveyor

7.SMEMA compatible
