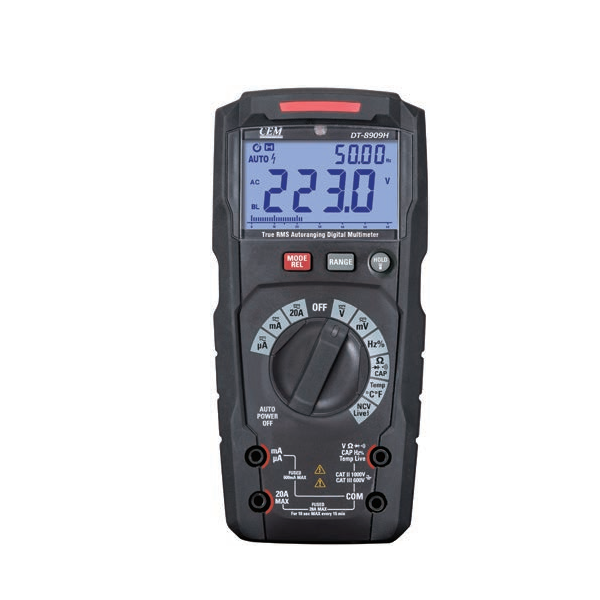

CEM DT-8909H True RMS 数显万用表 (True RMS, 1000VDC, 20A, ± 0,5%±3)

AC Voltage (Max. Range;Basic Accuracy): 6V/60V/600V/1000V; ±(1.0 % ± 5)

DC Voltage (Max. Range;Basic Accuracy): 600mV/6V/60V/600V/1000V; ±(0.5% ± 3)

AC Current (Max. Range;Basic Accuracy): 60mA/600mA/20A; ±(2.5% ± 5)

DC Current (Max. Range;Basic Accuracy): 60μA/6mA/60mA/600mA/20A; ±(2.0% ± 3)

Resistance (Max. Range;Basic Accuracy): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ; ±(2.5% ± 5)

Temperature (Max. Range;Basic Accuracy): -20-1000°C/-4-1832°F; ±(2.5% ± 3°C)

Capacitance (Max. Range;Basic Accuracy): 60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF; ±(2.5% ± 5)

Duty Cycle: 1~99%

Frequency (Max. Range;Basic Accuracy): 9.999Hz/9.999MHz; ±(1.0% ± 2)

Size (HxWxD): 188mm x 88mm x 56mm

Weight: 420g

Accessories: Test leads, 1.5Vx3 “AAA” batteries, type K temperature probe, gift box with carrying case.
