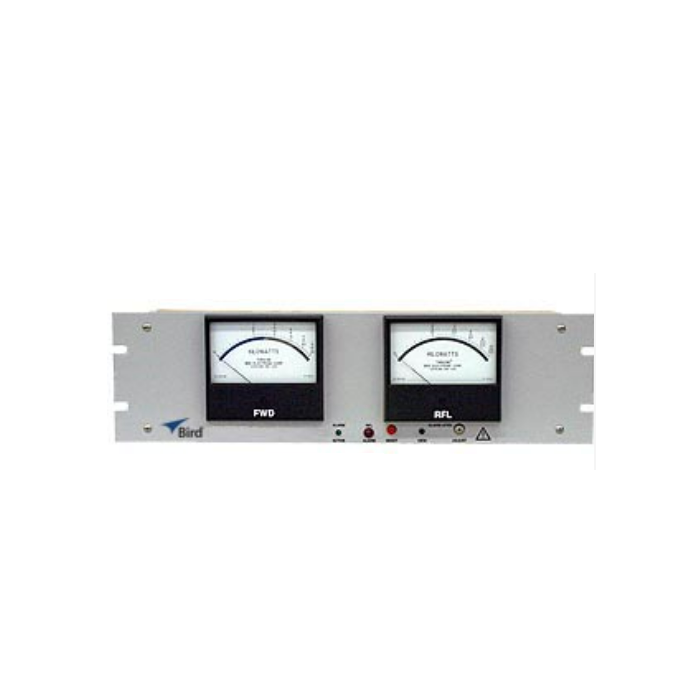

Bird 3128A 射频功率监测器 (100 mW ~ 10 kW)

Power Range: 100 mW to 10 kW

Frequency Range: 450 kHz - 2.7 GHz

Insertion VSWR: with N connectors 1.05 max. to 1000 MHz, 1.1 max. to 2700 MHz

Accuracy: ± 5% of full scale

Meter Scales: FWD and RFL 25, 50, 100 W

Meter Sensitivity: 30 µA/1400 ohm

Alarms: Front Panel Buzzer and Red LED

AC Power: 115/230 V, 50/60 Hz @ 0.125 A

DC Power: 9 ~ 16 V @ 1 A

Connectors

Finish: Gray Powder Coat

Dimensions(W x H x D):

     19" x 5-7/32" x 3-3/4"

     483 x 133 x 95 mm)

Weight: 5 lbs. (2.28 kg)
