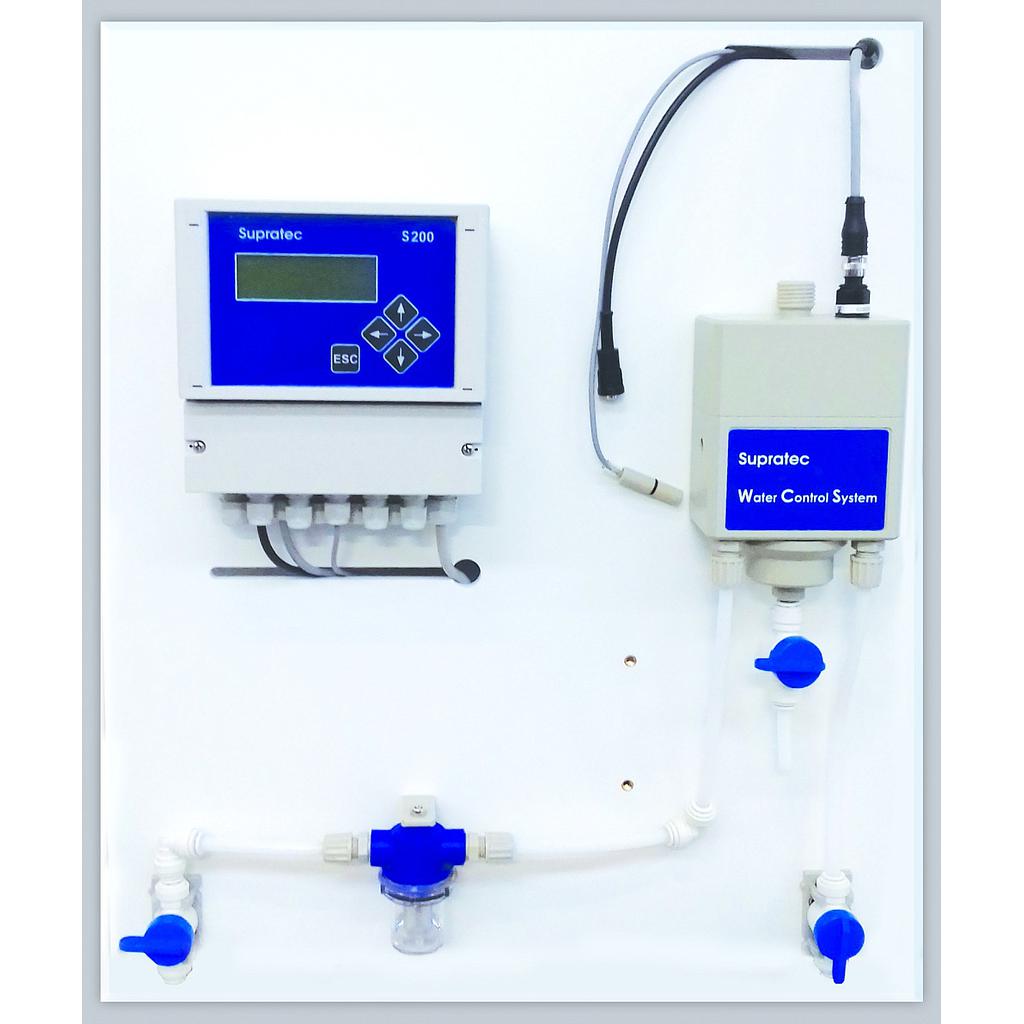

Aqualabo S200 游离氯分析仪 (0.00 - 5.00 mg/L)

Technical characteristics sensor

Measured parameter

Measuring principle Free Chlorine

Measuring principle pH: Potentiostatic with one gold ring

                                      Reference used on the pH probe

                                      Combined electrode reference / measure

Measuring range: Free Chlorine : 0.00 to 5.00 mg/L

                             Active Chlorine : 0.00 to 5.00 mg/L

                             pH : -2.00 to +16.00

                             Temperature : -30.00 to +140.00 °C

Resolution: Chlorine : 0.01 mg/L

                   pH : 0.01 mV Resistor > 5x1011 Ω

                   Temperature : 0.1 °C/Pt100/Pt1000

Accuracy:  +/- 2 % Full Scale

Response time: 30 s

Chlorine sensor

Material in contact with the middle: Glass/gold

Water temperature max.: 70 °C

Pressure max: 8 bars at 20 °C

Flow: Between 40 and 120 l/h

         Fluctuations Compensated and checked

Temperature: Pt1000

pH sensor

Water temperature max.: 70 °C

Pressure max: 8 bars at 20 °C

Flow: Between 40 and 120 l/h

         Fluctuations Compensated and checked

Constructional design wall-mounted casing S200

Mains power: 230 V/AC, +/- 10 % (50/60 Hz)

                      Consumption 16 VA

Display: LCD display, 4x20 characters, alphanumeric, backlight

              Easy operation by means of 5 keys

Dimensions (WxHxD): 160 x 165 x 85 mm

Weight: 1,1 Kg

Protection class: IP 65

Operating temperature: -20 to + 55 °C

                       Max 90 % relative humidity at 40 °C non-condensing

Storage temperature: -20 to +65 °C
