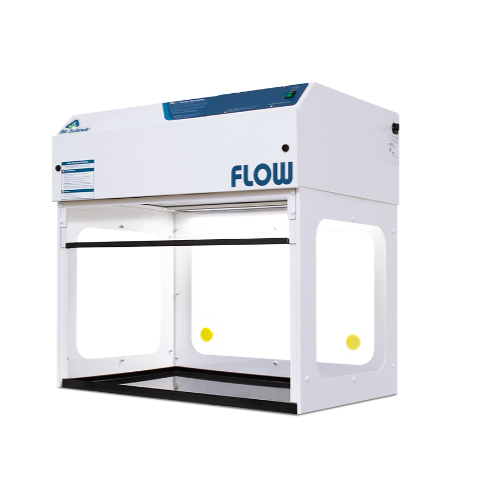

Air Science FLOW-36-G 层流油烟机 (36")

DIMENSIONS & WEIGHTS

Internal Height: 23.5″  |  596 mm

External Width: 36″  |  914 mm

External Depth: 24″  |  610 mm

External Height: 35″  |  889 mm

Net Weight: 99 lbs  |  45 kg

PRODUCT SPECIFICATIONS

Filtration:

Airflow : Vertical downflow; 0.30 m/s (60 fpm).

Pre-Filter : Disposable polyester fibers with 85% arrestance.

Main Filter : HEPA efficiency, 99.97% at 0.3 μm.

Clamping : Screw compression clamp.

Construction:

Finish (exterior) : White epoxy-coated steel frame with white legs on cabinet sides.

Windows : Acrylic, transparent.

Blower : EC blower.

Controls : Main On/Off switch for fan and lighting. Solid-state fan speed control with RFI filter maintains blower uniformity.

Pass Through Ports : Two, standard, knock-out.

Efficiency:

Power Consumption: 78w

Lighting : LED.

STANDARDS & COMPLIANCE

Quality Management Systems ISO 9001:2015

Electrical Safety: UL-C-61010-1; CAN/CSA C22.2 61010-1-12; EN 61010-1:2010; CE Mark

Environment: ISO 14001:2015; ENERGY STAR® Partner
