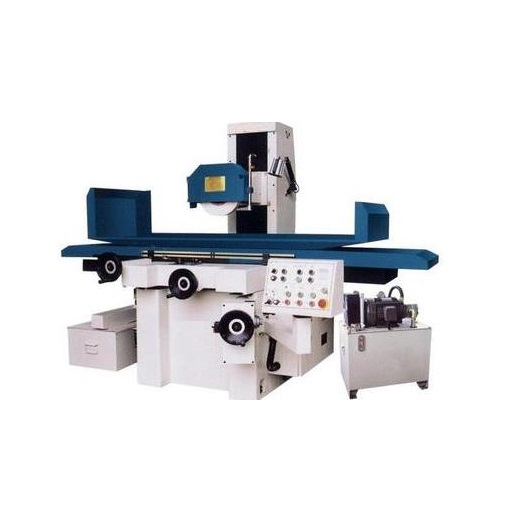

Working Surface of Table (mm): 400x1000(16"x40")

Max.Table Travel (mm): 1120

Max.Cross Travel (mm): 450

Distance Between Table Surface and Spindle Center (mm): 580

Max.Table Load (kgs): 700

Tee Slot(NumberXWidth) (mm): 3x16

Table Speed (m/min): 5~2

Crossfeed Handwheel:

        1grad (mm): 0.02

1rev: 5

Automatic Crossfeed (mm): 0.5~12

Power Cross Feed:

        50Hz (mm): 790

60Hz: 950

Grinding Wheel (mm): 355x40x127

Spindle Speed:

        50Hz (rpm): 1450

60Hz: 1740

Vertical Hand wheel:

        1grad (mm): 0.01/0.01/0.001

1rev (mm): 2/2/0.5

Min.Down Feed Rate (mm): -/-/0.005~0.025

Power Head Increment (mm/min): -/380/230

Spindle Motor (kw): 5.5

Vertical Motor (nm): -/90/90

Hydraulic Motor (kw): 2.2

Dust Collection Motor (w): 550

Coolant Motor (w): 90

Crossfeed Motor (kw): 90

Floor Space Dimensions (mm): 3600x2600

Packing Dimensions (mm): 2990x2225x2210

Net Weight (kgs): 2900/2910/2950

Gross Weight (kgs): 3200/3210/3250
