MADE TESTRANSFO2 변압기 컨트롤러

APPLICATION

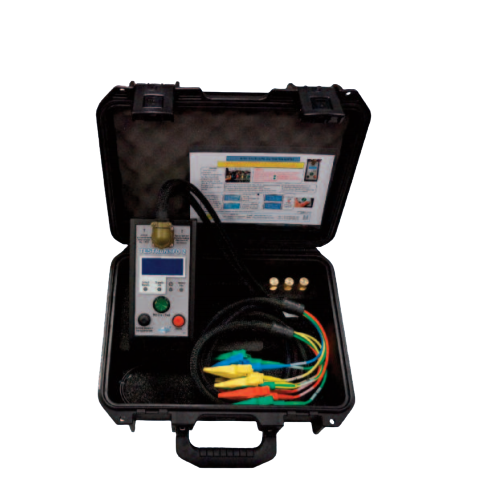

TESTRANSFO2 is a small, self-powered, hand-held device which is used to check the functionality of a tri-phased transformer disconnected from the network.

Usable on all distribution transformers, it automatically performs a sequence of tests taking only two minutes to confirm whether the transformer is functional or not.

USE PRINCIPLE

TESTRANSFO2 automatically checks 19 critical points of your transformer to prevent any possible default before installation.

These tests include:

- Wiring continuity (open-circuit, short-circuit)

- Transformation ratio of the three phases

- Waveform coherency on HV/LV sides

The sofware allows the user to display a one page report, or to save it in pdf.

New ! It is now possible to save up to 10 measurement reports in the TESTRANSFO2 memory.

 2 battery 9 V, type LR61

– 193 x 100 x 72 mm

– ABS box

– 3,3 kg

– IP 52

Details

Datasheet


Manual
