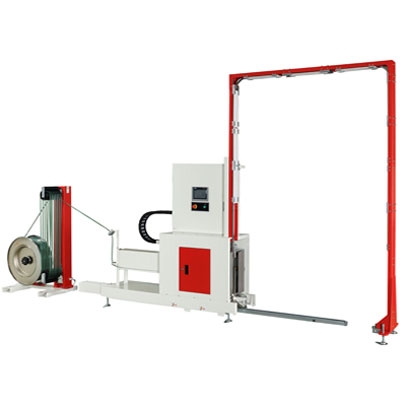

Transpak TP-733VM Pollux III パレット包装機 (PP & PET)
生産者: Transpak Model: TP-733VM 起源: Taiwan - 要件クオート
- 要件クオート
- 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24）62923267
Capacity: Up to 72 pallets/hour (2 parallel straps)
Strap Type: PP and PET strapping
Strap Width: 9 mm, 12 mm, 15.5 mm, or 19 mm
Strap Core Size: 406 mm
Tension Range
1,100 - 3,200 N (standard)
200 - 1,200 N (optional)
Weight: 445 kg
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Floating head
Index head stroke up to 700 mm (3M)
Free standing operation desk
Light tower with low strap sensor
Dual channel E-Stop
Lower tension range (200 - 1200 N)
Top press (200 kg or 500 kg)
HMI mounted on the opposite side
Uplifted support
End of strap signal
Video
Watch as reference: TP-733H Castor III & TP-733VLM Pollux III Pallet Strapping Machines - TRANSPAK
Datasheet
TP-733VLM is your best choice for fully automatic operation in various pallet strapping applications. The enhanced TP-733VLM maximizes the productivity by applying straps consistently and accurately on the pallet load, and minimizes the production cost by its high-speed and stable operation. Designed for simple and quick connection to the master control system, TP-733VLM can easily fit in all different end-of-line packaging sectors.
Features
ARES TP-733-SH strapping head
SIEMENS PLC and HMI
Swivel dispenser set
Index strapping head
Movable strap lance
Friction weld sealing Technology
Free access to strap guides
Molular arch
Adjustable sealing and cooling time
Strap end ejector
Easy to retrofit
