Transpak TP-702NIL Inline Cross Strapping System (for print media, 5-9mm, 1-32kg)

Capacity: Up to 31 bundles/minute

Bundle SizeW x L x H

Max: 450 x 500 x 390 mm

Min: 120 x 210 x 10 mm

Bundle Weight: max 25 kg

Strap Width: 5 mm, 6 mm, or 9 mm

Tension Range: 1 - 32 kg

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Pneumatic Source: 6 bar

Air Consumption: 11.18 liter/cycle

Weight: 905 Kg

Options

Energy saving transit with auto sleep mode

Light tower with low strap sensor (triple lamp)

Additional soft press for convex bundle

Lower adjustable table height with movable casters (730 mm – 830 mm)

Automatic side squaring

Reverse bundle flow

Low volume bundle bypass

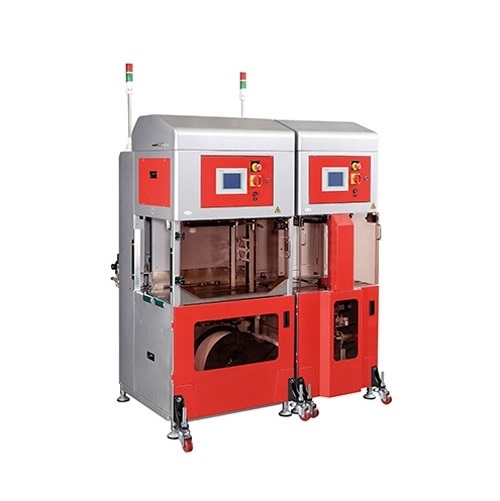

Movable casters (picture shown with this option)

Lever switch for bundle with wrapping

Details

Video

Watch as reference: TP-702NIL Inline Cross Strapping System, Newspaper Strapping Machines - TRANSPAK

Datasheet


TP-702NIL is a fully automatic strapping system for inline cross strapping. The design without bundle turning can secure the integrity of the bundle for cross strapping.

Features

Robust & compact mechanical strapping head

Automatic self-adjusting strap chute (patents registered)

Siemens PLC and HMI

Easy access to strapping head (patents registered)

Free access to strap guides (patents registered)

Automatic tension control (patents registered)

Dual pneumatic press

Auto strap ejector

Strap end ejector

Up and down stream interlock with complete plug connection
